PS1608MT2R2

Fixed Inductors Overview

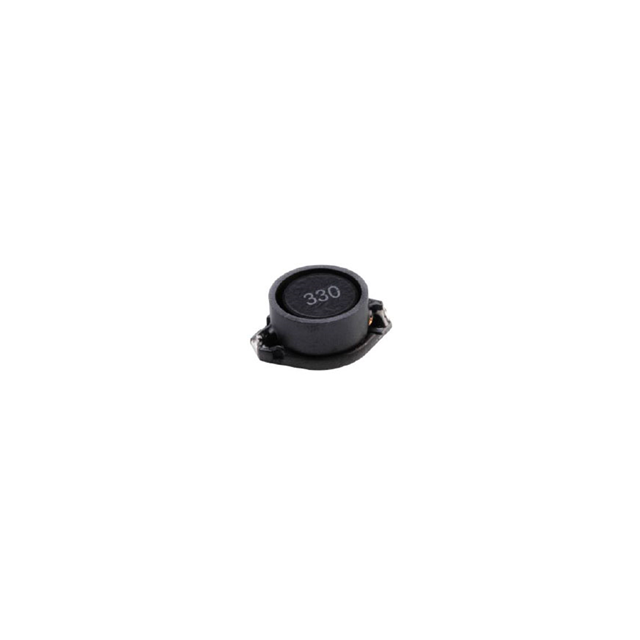

The PS1608MT2R2 is a shielded surface-mount power inductor manufactured by Viking Tech. It features a ferrite core and a nonstandard package dimension of 2618 (6.6mm x 4.45mm). The component provides an inductance of 2.2 µH with a tolerance of 20%. It supports a maximum rated current of 1.8 A and exhibits a maximum DC resistance of 50 mΩ. The device operates within a temperature range of -40°C to 125°C and complies with RoHS standards.

Fixed Inductors Feature Summary

• Shielded magnetic structure prevents crosstalk
• Suitable for high-density installation
• Compatible with reflow soldering processes

Fixed Inductors Applications

• Power supply circuits
• General purpose filtering
• High-density electronic assemblies

Fixed Inductors Procurement Notes

Verify the manufacturer designation as Viking Tech Corp or SEI, as both entities list this part number. Confirm the specific datasheet version matches the required electrical characteristics, particularly the 1.8 A current rating and 50 mΩ DCR limits. Ensure the package dimensions align with the PCB footprint design for the 2618 form factor before finalizing procurement orders.

Fixed Inductors Selection Notes

Select this component for applications requiring compact shielding to minimize electromagnetic interference in dense layouts. The 2.2 µH value and 1.8 A current capacity suit moderate power handling needs. Consider the 50 mΩ DC resistance for efficiency calculations in low-voltage circuits. Verify thermal performance at the upper operating limit of 125°C for robustness.

Fixed Inductors Part Context

This part belongs to the Viking Tech general-purpose inductor family, characterized by miniature size and ferrite-core construction. Similar models in the series include PD1608MT variants and PS1608MT103, differing primarily in inductance values and current ratings while maintaining consistent package dimensions and mounting compatibility.

Fixed Inductors Replacement Considerations

Cross-reference with PD1608MT1R0 for similar package constraints but different inductance. Verify that substitute components maintain the 2618 footprint and shielded design to ensure mechanical and electromagnetic compatibility without redesigning the PCB layout.
