PS2220P02

Overview

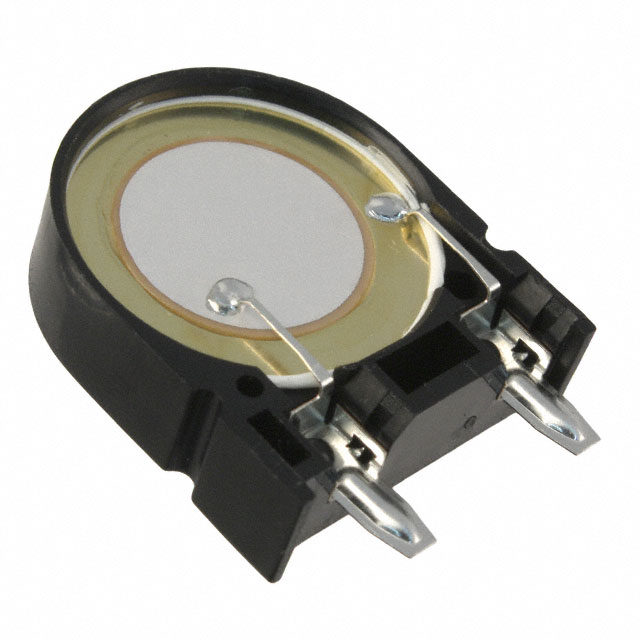

The PS2220P02 is a through-hole piezoelectric sounder manufactured by TDK Corporation. It operates with a maximum voltage of 20V and features pin terminals for mounting. The device produces a sound pressure level of 75dBA at a distance of 10cm when driven at 3V. Its resonant frequency is specified at 2kHz under the same drive conditions. The component utilizes a transducer design suitable for audio signaling applications.

Feature Summary

• Piezoelectric transducer technology for acoustic signal generation
• Through-hole pin terminal construction for board mounting
• Defined sound pressure output at standard drive voltage

Applications

• Audio signaling in consumer electronics
• Status indication in data processing equipment
• Alarm systems in industrial control units

Procurement Notes

Verify the specific datasheet version to confirm mechanical dimensions and electrical tolerances. Ensure the ordering suffix matches the required terminal configuration. Cross-reference the manufacturer's official documentation for safety certifications and environmental compliance status before integration into final designs.

Selection Notes

Select this component where a 2kHz resonant frequency aligns with system requirements. Consider the 75dBA output level relative to enclosure acoustics. Verify that the 20V maximum rating exceeds the circuit's peak operating voltage. Confirm through-hole compatibility with the target PCB layout.

Part Context

This part belongs to TDK's line of piezoelectric sounders designed for general-purpose audio indication. It serves as a discrete acoustic output device within electronic assemblies requiring simple, reliable signaling without complex driver circuits.

Replacement Considerations

Consult TDK's official substitution guide for equivalent piezo sounders. Verify matching resonant frequency and sound pressure levels. Ensure physical footprint and terminal pitch compatibility with existing PCB layouts.
