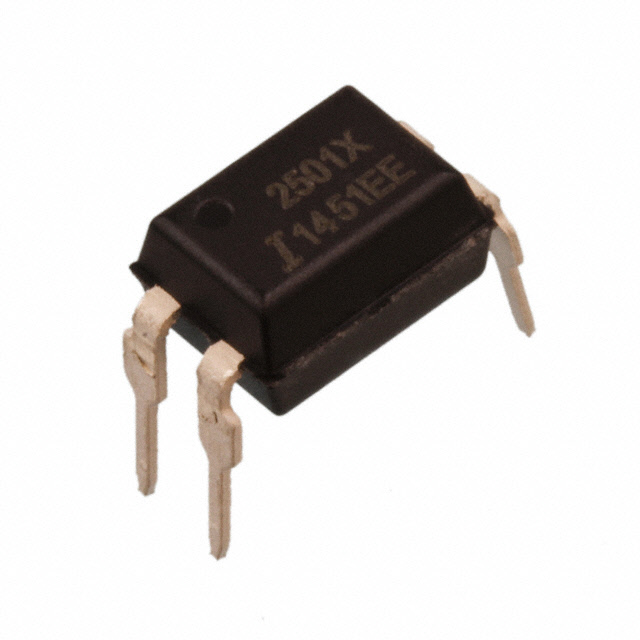

PS2501-1X

$0.38

Description：OPTOISOLTR 5.3KV 1CH TRANS 4-DIP
Series：-
Mfr：Isocom Components 2004 LTD
Package：Tube

SKU:57779486e68d Category: Transistor, Photovoltaic Output Optoisolators Brand: Isocom Components 2004 LTD

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：OPTOISOLTR 5.3KV 1CH TRANS 4-DIP
Series：-
Mfr：Isocom Components 2004 LTD
Package：Tube
Number of Channels：1
Voltage - Isolation：5300Vrms
Current Transfer Ratio (Min)：80% @ 5mA
Current Transfer Ratio (Max)：600% @ 5mA
Turn On / Turn Off Time (Typ)：-
Rise / Fall Time (Typ)：4µs, 3µs
Input Type：DC
Output Type：Transistor
Voltage - Output (Max)：80V
Current - Output / Channel：-
Voltage - Forward (Vf) (Typ)：1.2V
Current - DC Forward (If) (Max)：50 mA
Vce Saturation (Max)：300mV
Operating Temperature：-30°C ~ 100°C
Mounting Type：Through Hole
Package / Case：4-DIP (0.300", 7.62mm)
Supplier Device Package：4-DIP
Grade：-
Qualification：-

Download product information

PS2501-1X

Overview

The PS2501-1X is a single-channel optocoupler from the PS2501 series manufactured by Isocom Components. It features an AC input LED and a phototransistor output in an 8-pin DIP package. Key electrical parameters include a maximum forward voltage of 1.4V, a maximum input current of 50mA, and an isolation voltage of 5300Vrms. The device operates within a temperature range of -30°C to 100°C. Typical switching times are 4μs for rise time and 3μs for fall time. The current transfer ratio ranges from a minimum of 0.8% to a maximum of 6%. It holds UL certification.

Feature Summary

Provides high-voltage electrical isolation between input and output circuits using infrared light transmission.
Designed with an AC-input compatible LED structure for direct connection to alternating current signals.
Encapsulated in a standard dual in-line package suitable for through-hole mounting on printed circuit boards.

Applications

Logic-to-logic isolation in noisy industrial environments
Line receiver applications for signal transmission
Programmable current level sensing circuits

Procurement Notes

Verify the specific suffix 'X' against the manufacturer's latest datasheet to confirm lead frame plating or tape-and-reel configuration details. Ensure the AC input characteristic aligns with your circuit design requirements rather than assuming DC compatibility. Cross-reference the UL file number for compliance needs. Confirm the 8-pin DIP footprint matches your PCB layout constraints before finalizing the order.

Selection Notes

Select this component when AC-driven optical isolation is required for single-channel applications. The wide operating temperature range supports demanding environmental conditions. Consider the low current transfer ratio suitability for logic-level signaling rather than high-power driving. Verify that the 5300Vrms isolation rating meets the safety standards of your target application domain.

Part Context

This part belongs to the PS2501 series, which includes variants with different channel counts such as the PS2501-2X (dual channel) and PS2501-4X (quad channel). All variants share similar electrical characteristics and packaging styles but differ in pin count and internal channel configuration. The series is designed as a replacement for discontinued industry-standard optocouplers.
