PS2505-4-A

Overview

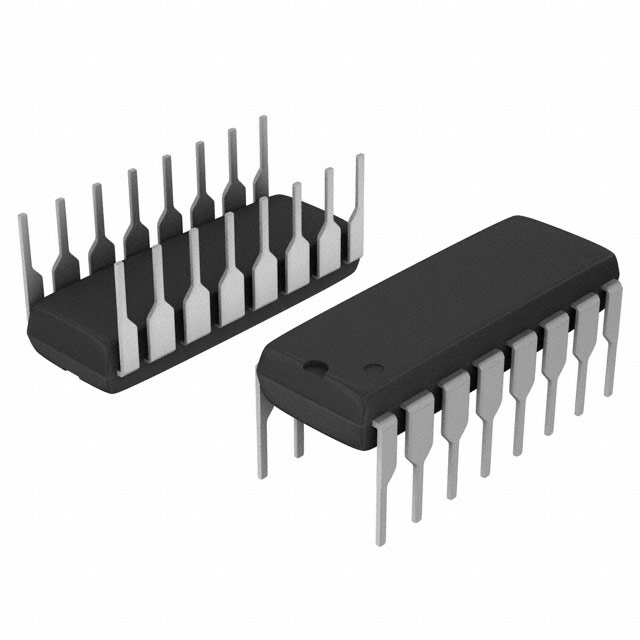

The PS2505-4-A is a four-channel transistor output optocoupler manufactured by Renesas Electronics. It features an NPN phototransistor output with a minimum current transfer ratio of 200% and a maximum of 600%. The device supports a forward current of 80 mA with a forward voltage of 1.4 V. It provides high isolation voltage of 5000 Vrms and operates within a temperature range of -55°C to +100°C. Key electrical parameters include a maximum collector-emitter voltage of 40 V, maximum collector current of 160 mA, and saturation voltage of 1 V. Switching times are specified at 100 µs for both rise and fall.

Feature Summary

• Provides four independent channels for multi-signal isolation in compact packaging
• Delivers high current transfer ratio suitable for driving low-current loads directly
• Ensures robust electrical isolation between input and output circuits

Applications

• Industrial automation control systems requiring signal isolation
• Power supply feedback loops for voltage regulation
• Microcontroller interface circuits for noise immunity

Procurement Notes

Verify the specific suffix and revision level against the official datasheet before procurement. Confirm that the component meets all required insulation and safety certifications for the target application environment. Ensure compatibility with existing PCB footprints and thermal management requirements during integration.

Selection Notes

Select this component when multiple isolated channels are needed in a single package. Consider the 5000 Vrms isolation rating for high-voltage separation needs. Evaluate the 160 mA collector current capability against load requirements. Verify that the switching speed meets the system timing constraints.

Part Context

This part belongs to the PS2505 series of transistor output optocouplers from Renesas Electronics. The series is designed for general-purpose isolation applications. The four-channel configuration allows for space-efficient designs compared to using discrete single-channel devices. It complements other variants in the family with different channel counts or output types.

Replacement Considerations

Check for direct pin-compatible substitutes within the same manufacturer's portfolio. Verify equivalent isolation voltage and current transfer ratio specifications. Ensure the replacement maintains the same package type and thermal characteristics.
