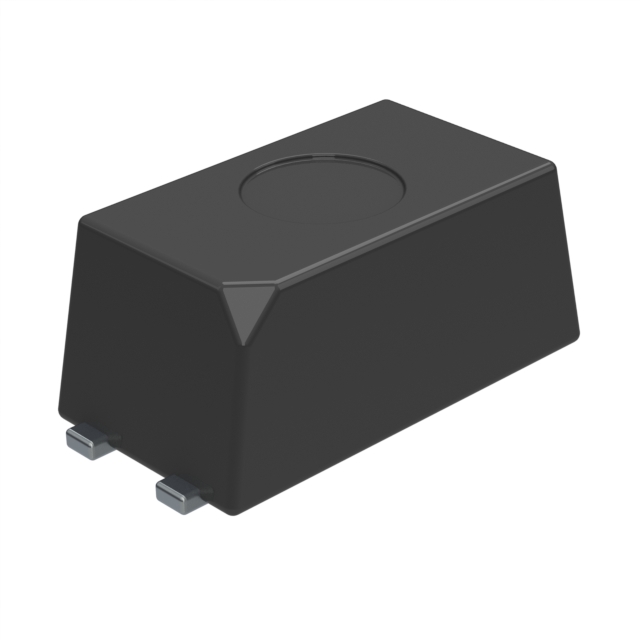

PS2913-1-V-F3-AX

$1.90

Description：OPTOISO 2.5KV TRANS 4-MINI-FLAT
Series：-
Mfr：Renesas Electronics Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:85156d258daf Category: Transistor, Photovoltaic Output Optoisolators Brand: Renesas Electronics Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：OPTOISO 2.5KV TRANS 4-MINI-FLAT
Series：-
Mfr：Renesas Electronics Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
Number of Channels：1
Voltage - Isolation：2500Vrms
Current Transfer Ratio (Min)：50% @ 1mA
Current Transfer Ratio (Max)：200% @ 1mA
Turn On / Turn Off Time (Typ)：80µs, 50µs
Rise / Fall Time (Typ)：10µs, 10µs
Input Type：DC
Output Type：Transistor
Voltage - Output (Max)：120V
Current - Output / Channel：30mA
Voltage - Forward (Vf) (Typ)：1.1V
Current - DC Forward (If) (Max)：50 mA
Vce Saturation (Max)：300mV
Operating Temperature：-55°C ~ 100°C
Mounting Type：Surface Mount
Package / Case：4-SMD, Flat Leads
Supplier Device Package：4-Mini-Flat
Grade：-
Qualification：-

Download product information

PS2913-1-V-F3-AX

Overview

The PS2913-1-V-F3-AX is a single-channel transistor output optocoupler manufactured by Renesas Electronics. It provides 2500 Vrms isolation voltage between input and output circuits. The device features an NPN phototransistor output capable of handling a maximum collector-emitter voltage of 120V and a continuous collector current of 30mA. Typical switching characteristics include rise and fall times of 10µs, with turn-on and turn-off times of 80µs and 50µs respectively. The component operates within a temperature range of -55°C to +100°C and utilizes a 4-pin SSOP surface-mount package.

Feature Summary

Provides high-voltage electrical isolation for signal transmission
Features fast switching speeds suitable for digital applications
Offers wide operating temperature range for industrial environments

Applications

Industrial control systems requiring galvanic isolation
Solid-state relay driver circuits
Power supply feedback loops
Microcontroller interface isolation

Procurement Notes

Verify the specific suffix 'V' against the manufacturer's official datasheet to confirm pinout compatibility and functional equivalence. Ensure the SSOP-4 package dimensions match the target PCB footprint. Confirm RoHS compliance status through the latest product release notes before finalizing procurement specifications.

Selection Notes

Select this component when a compact single-channel isolator with moderate speed is required. The 120V output voltage rating supports direct driving of various logic levels. Consider thermal dissipation limits in dense layouts due to the small package size. Verify that the 30mA output current capability meets the load requirements of the destination circuit.

Part Context

This part belongs to the PS2913 series of ultra-small optocouplers designed for space-constrained applications. The series is characterized by its miniaturized footprint and robust isolation capabilities. Renesas continues to support this family for legacy and new designs requiring reliable DC signal isolation in industrial and consumer electronics.
