PSUTWCNF

Antennas RF Overview

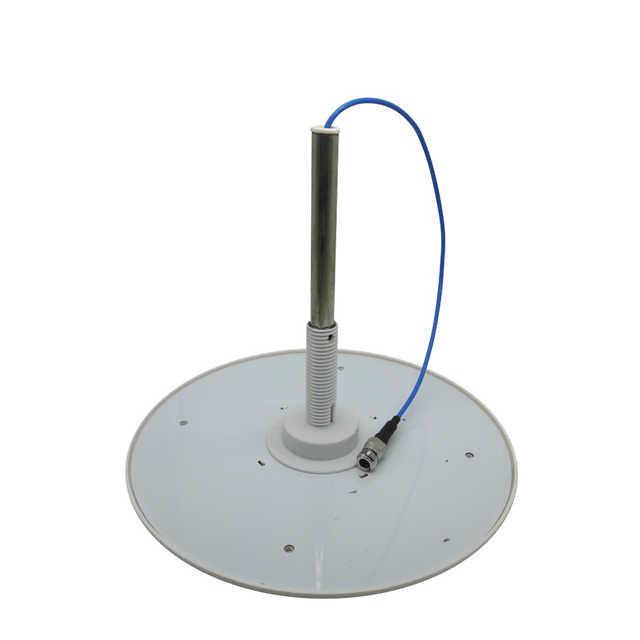

The PSUTWCNF is a dual-band antenna manufactured by Pulse Electronics, designed for UHF frequency applications. It operates at center frequencies of 475 MHz and 830 MHz, supporting coverage in the 300MHz to 1GHz range. The component features a compact length of 9.5 mm and utilizes cable-type connections. It is engineered for robust performance in demanding environments, specifically targeting public safety and multi-floor building infrastructure.

Antennas RF Feature Summary

• Dual-band operation supporting 475 MHz and 830 MHz frequencies
• Designed for in-building repeater systems and public safety networks
• Compact physical form factor with 9.5 mm length

Antennas RF Applications

• In-building repeater systems
• Public safety communications
• Multi-floor coverage solutions

Antennas RF Procurement Notes

Verify the specific cable type and connector interface requirements against your system design before procurement. Confirm that the 475 MHz and 830 MHz frequency bands align with your local regulatory spectrum allocations. Ensure mechanical clearance accommodates the 9.5 mm dimension during installation planning.

Antennas RF Selection Notes

Select this model when deploying internal signal distribution for emergency services or critical infrastructure. It is suitable for scenarios requiring reliable coverage across multiple floors within large structures. Consider environmental durability ratings if installed in non-climate-controlled spaces.

Antennas RF Part Context

This component belongs to Pulse Electronics' portfolio of RF antennas tailored for specialized communication needs. It addresses the demand for high-reliability signal transmission in complex indoor environments where standard external antennas may be ineffective or prohibited.
