PT-1241PFQ

Overview

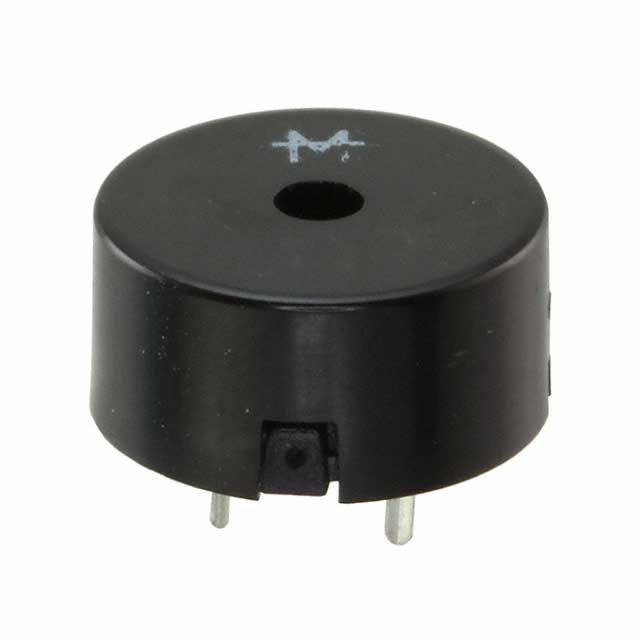

The PT-1241PFQ is a piezoelectric buzzer manufactured by Mallory Sonalert Products Inc. It operates at a rated voltage of 3 VDC and draws a current of 1.5 mA. The device produces an acoustic output of 80 dB measured at 3 VDC and 10 cm distance, with a resonant frequency of 4 kHz. It utilizes through-hole PC pin termination for board mounting.

Feature Summary

• Externally driven piezoelectric transducer design
• Through-hole PC pin termination for printed circuit board integration

Applications

• Audible alarm systems
• Board mount audio indicators

Procurement Notes

Verify the specific ordering suffix to ensure correct electrical characteristics and termination style. Confirm RoHS compliance status against the latest manufacturer documentation before finalizing procurement specifications.

Selection Notes

Select this component for applications requiring a compact, low-power audible alert. Ensure the driving circuit can supply the specified 1.5 mA current at 3 VDC to achieve the rated 80 dB sound pressure level.

Part Context

This part belongs to the Mallory Sonalert lineup of audio indicators and alarms. The manufacturer specializes in high-performance audible and visual warning devices for industrial, consumer, transportation, medical, and military markets.

Replacement Considerations

Mallory Sonalert provides cross-reference sheets for obsolete Murata buzzers. Verify compatibility with existing designs when considering alternative sources or substitute part numbers.

FAQ

What is the operating voltage?

The rated operating voltage is 3 VDC.

How is the device mounted?

It uses through-hole PC pins for board mounting.
