PT-2408
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters

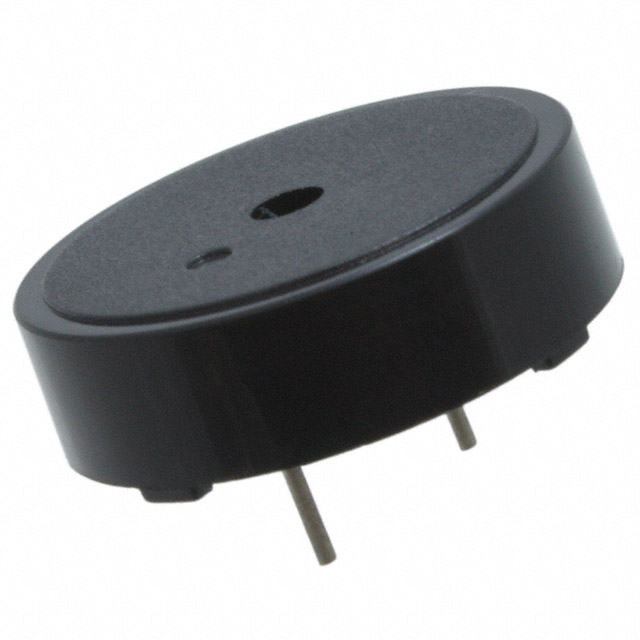

- Description：BUZZER PIEZO 5V 24MM TH
- Series：PT
- Mfr：Soberton Inc.
- Package：Tray
- Driver Circuitry：Transducer, Externally Driven
- Input Type：Peak-Peak Signal
- Frequency：4kHz
- Technology：Piezo
- Operating Mode：Single Tone
- Duration：-
- Sound Pressure Level (SPL)：90dB @ 5V, 10cm
- Current - Supply：1mA
- Port Location：Top
- Operating Temperature：-20°C ~ 70°C
- Approval Agency：-
- Ratings：-
- Ingress Protection：-
- Mounting Type：Through Hole
- Termination：PC Pins
- Height - Seated (Max)：0.303" (7.70mm)
- Voltage - Rated：5 V
- Voltage Range：1 ~ 30V
- Size / Dimension：0.945" Dia (24.00mm)
Download product information
FAQ
What is the rated power of the PT-2408?
The official documentation does not provide a specific rated power value for this model.
Is the PT-2408 compatible with mobile telephone applications?
The provided source material does not confirm compatibility or application scenarios for the PT-2408 model.
