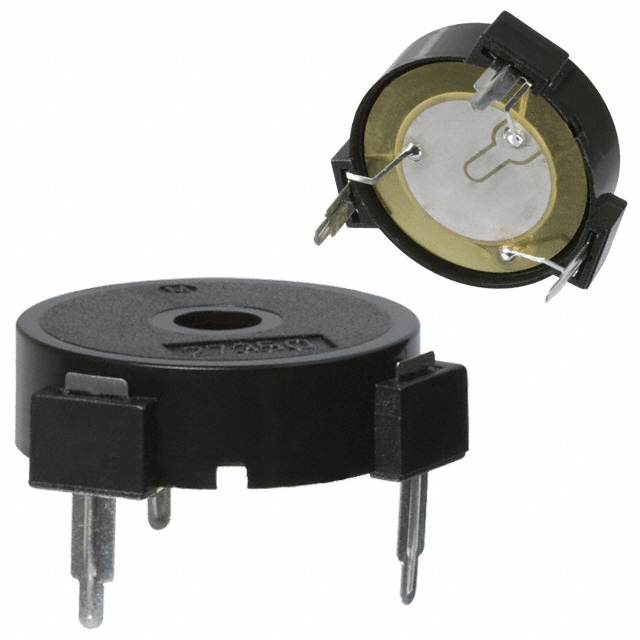

PT-2735FPLQ

$2.14

Description：BUZZER PIEZO 12V 30MM TH
Series：PT
Mfr：Mallory Sonalert Products Inc.
Package：Bulk

SKU:2f209322d1ae Category: Alarms, Buzzers, and Sirens Brand: Mallory Sonalert Products Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：BUZZER PIEZO 12V 30MM TH
Series：PT
Mfr：Mallory Sonalert Products Inc.
Package：Bulk
Driver Circuitry：Transducer, Externally Driven
Input Type：DC
Frequency：3.5kHz
Technology：Piezo (with Feedback)
Operating Mode：Single Tone
Duration：-
Sound Pressure Level (SPL)：88dB @ 12V, 30cm
Current - Supply：10mA
Port Location：Top
Operating Temperature：-20°C ~ 90°C
Approval Agency：-
Ratings：-
Ingress Protection：-
Mounting Type：Through Hole
Termination：PC Pins
Height - Seated (Max)：0.362" (9.20mm)
Voltage - Rated：12 V
Voltage Range：3 ~ 28V
Size / Dimension：1.181" Dia (30.00mm)

Download product information

PT-2735FPLQ

Overview

The PT-2735FPLQ is a self-drive piezoelectric transducer manufactured by Mallory Sonalert Products Inc. It operates on a 12 VDC supply with a current rating of 10 mA. The device produces an 88 dBA sound pressure level at a frequency of 3.5 kHz. It features dual-tone output and utilizes solder pin termination for through-hole mounting. The physical dimensions are 30 mm in diameter and 10 mm in height.

Feature Summary

Self-drive piezoelectric technology for internal oscillation
Dual-tone audio output capability
Through-hole solder pin termination

Applications

General purpose audio signaling
Industrial equipment status indication
Consumer appliance alerts

Procurement Notes

Verify the specific suffix against official Mallory Sonalert documentation to confirm electrical characteristics and acoustic performance. Ensure the ordering part number matches the required voltage, tone type, and mounting style specifications before procurement.

Selection Notes

Select this component for applications requiring a compact, internally driven piezo buzzer. Confirm that the 12 VDC operating voltage and 10 mA current draw align with the system power budget. Verify that the 30 mm diameter fits within the available enclosure space.

Part Context

This part belongs to the Mallory Sonalert piezoelectric transducer family. These devices are designed for reliable audio indication in various electronic systems. The manufacturer specializes in audible and visual signaling components for industrial and commercial markets.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult official Mallory Sonalert documentation for equivalent models.
