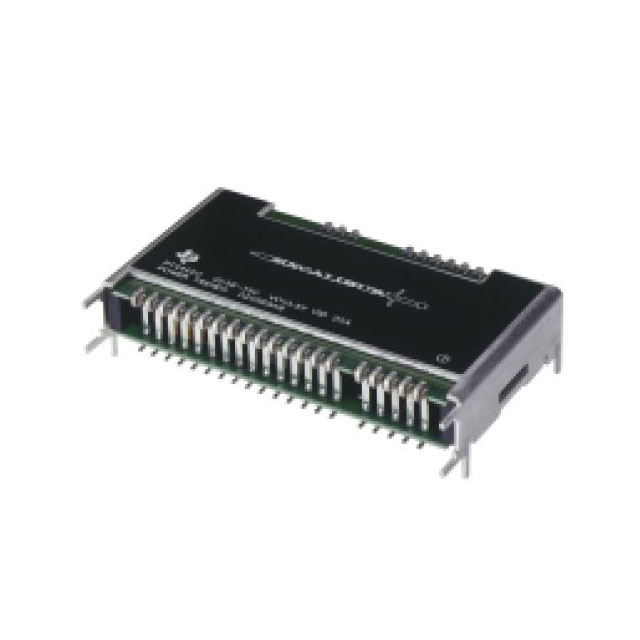

PT4411N

PT4411N is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Texas Instruments. Its product description is DC DC CONVERTER 1.3-3.5V 100W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for PT4411N

• Description：DC DC CONVERTER 1.3-3.5V 100W
• Series：Excalibur™ PT4410 (100W)
• Mfr：Texas Instruments
• Package：Tray
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：1.3 ~ 3.5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：30A
• Power (Watts)：100 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：UVLO
• Operating Temperature：-40°C ~ 85°C
• Efficiency：91%
• Mounting Type：Through Hole
• Package / Case：21-SIP Module
• Size / Dimension：-
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for PT4411N
