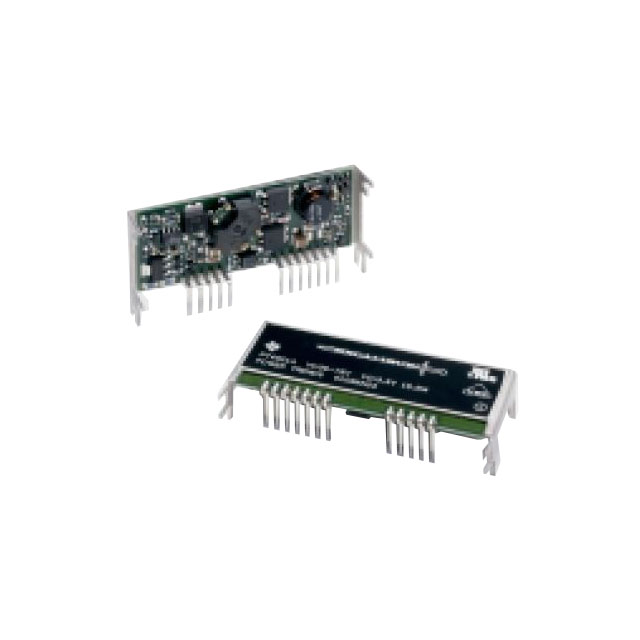

PT4522N

PT4522N is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Texas Instruments. Its product description is DC DC CONVERTER 5V 20W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for PT4522N

• Description：DC DC CONVERTER 5V 20W
• Series：Excalibur™ PT4520 (20W)
• Mfr：Texas Instruments
• Package：Tray
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：4A
• Power (Watts)：20 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：UVLO
• Operating Temperature：-40°C ~ 85°C
• Efficiency：82%
• Mounting Type：Through Hole
• Package / Case：12-SIP Module
• Size / Dimension：2.58" L x 0.50" W x 1.02" H (65.5mm x 12.7mm x 25.9mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for PT4522N
