PT800J

Single Diodes Overview

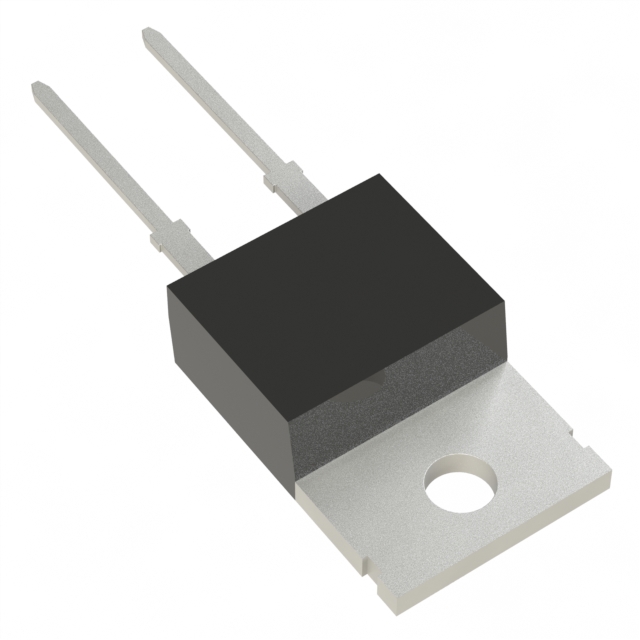

The PT800J is a standard recovery rectifier diode manufactured by Diotec Semiconductor. It features a maximum repetitive peak reverse voltage of 600 V and an average forward rectified current of 8 A. The device utilizes a TO-220AC through-hole package. Key electrical characteristics include a maximum forward voltage of 1.1 V at the rated current, a reverse leakage current of 5 µA, and a maximum reverse recovery time of 1500 ns. The component supports a surge current of 135 A and operates within a junction temperature range of -55°C to +175°C.

Single Diodes Feature Summary

• High current handling capability with 8 A average forward rectified current rating
• Robust thermal performance in TO-220AC through-hole package for efficient heat dissipation
• Standard recovery characteristics suitable for general-purpose power supply applications

Single Diodes Applications

• General purpose rectification in AC/DC power supplies
• Bridge rectifier configurations in low-frequency inverters
• Freewheeling diodes in DC-DC converter circuits

Single Diodes Procurement Notes

Verify the specific ordering suffix against the official Diotec Semiconductor datasheet to ensure correct pinout and packaging configuration. Confirm RoHS compliance status and REACH SVHC declarations prior to integration. Cross-reference the manufacturer part number with authorized distributor catalogs to validate authenticity and traceability. Ensure the selected variant matches the required thermal resistance specifications for the target application environment.

Single Diodes Selection Notes

Select this component when an 8 A current rating and 600 V blocking voltage are required in a through-hole format. The TO-220AC package provides superior thermal management compared to surface-mount alternatives. Consider the 1500 ns reverse recovery time for frequency limitations in switching applications. Evaluate the 1.1 V forward voltage drop for efficiency calculations in high-current paths.

Single Diodes Part Context

The PT800J belongs to Diotec Semiconductor's discrete rectifier portfolio, designed for industrial and consumer electronics. It complements other standard recovery diodes in the series, offering a balance of current capacity and voltage rating. The TO-220AC form factor ensures compatibility with traditional PCB mounting techniques and heatsink integration strategies common in power electronics design.

Single Diodes Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation.
