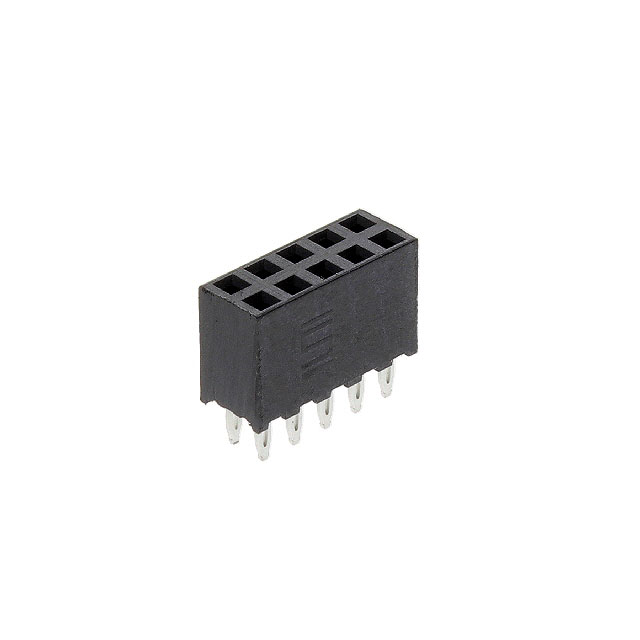

PTF-140-01-S-D

PTF-140-01-S-D is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is 2.00 MM PRESS-FIT SOCKET STRIP. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for PTF-140-01-S-D

• Description：2.00 MM PRESS-FIT SOCKET STRIP
• Series：PTF
• Mfr：Samtec Inc.
• Package：Bulk,Bulk
• Connector Type：Socket
• Contact Type：Forked
• Style：Board to Board
• Number of Positions：80
• Number of Positions Loaded：All
• Pitch - Mating：0.079" (2.00mm)
• Number of Rows：2
• Row Spacing - Mating：0.079" (2.00mm)
• Mounting Type：Through Hole
• Termination：Press-Fit
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：30.0µin (0.76µm)
• Insulation Color：Black
• Insulation Height：0.250" (6.35mm)
• Contact Length - Post：0.090" (2.29mm)
• Operating Temperature：-55°C ~ 125°C
• Material Flammability Rating：-
• Contact Finish - Post：Tin
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：-
• Current Rating (Amps)：2.9A per Contact
• Voltage Rating：-

Headers, Receptacles, Female Sockets datasheet and documents for PTF-140-01-S-D
