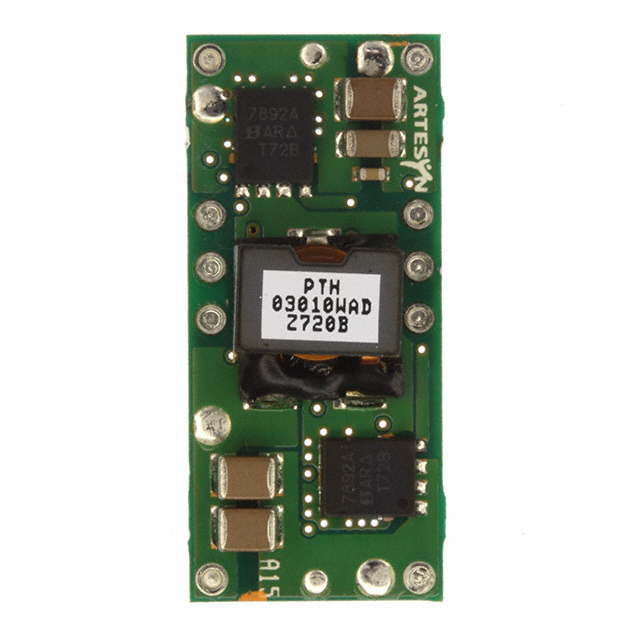

PTH03010WAD

PTH03010WAD is listed in the DC DC Converters range at ChipApex. The manufacturer field lists ARTESYN / Advanced Energy. Its product description is CONV DC/DC 3.3VIN ADJOUT 15A. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for PTH03010WAD

• Description：CONV DC/DC 3.3VIN ADJOUT 15A
• Series：PTH03010W (37W)
• Mfr：ARTESYN / Advanced Energy
• Package：Tray
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：2.95V
• Voltage - Input (Max)：3.65V
• Voltage - Output 1：0.8 ~ 2.5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：15A
• Power (Watts)：-
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Remote On/Off, SCP, UVLO
• Operating Temperature：-40°C ~ 85°C
• Efficiency：93%
• Mounting Type：Through Hole
• Package / Case：10-DIP Module
• Size / Dimension：1.37" L x 0.62" W x 0.35" H (34.8mm x 15.7mm x 8.9mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for PTH03010WAD
