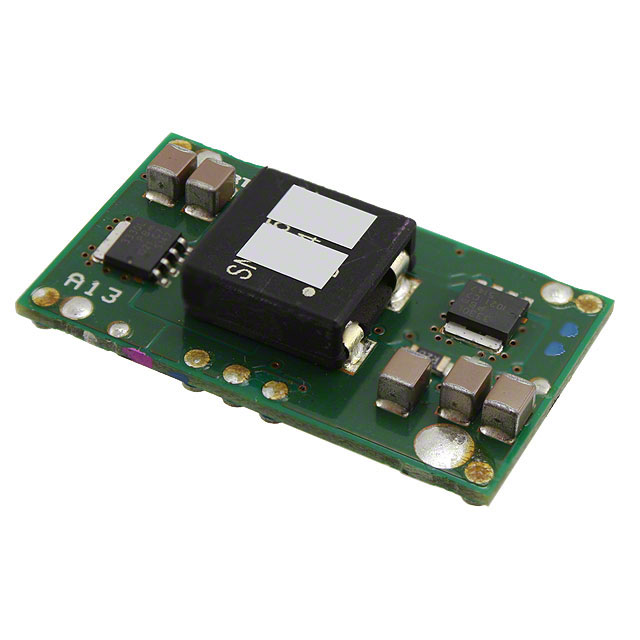

PTH05020WAZ

PTH05020WAZ is listed in the DC DC Converters range at ChipApex. The manufacturer field lists ARTESYN / Advanced Energy. Its product description is CONV DC/DC 5VIN ADJ OUT 22A SMD. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for PTH05020WAZ

• Description：CONV DC/DC 5VIN ADJ OUT 22A SMD
• Series：PTH05020W (79W)
• Mfr：ARTESYN / Advanced Energy
• Package：Tray
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：5.5V
• Voltage - Output 1：0.8 ~ 3.6V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：22A
• Power (Watts)：-
• Voltage - Isolation：-
• Applications：-
• Features：UVLO
• Operating Temperature：-40°C ~ 85°C
• Efficiency：95%
• Mounting Type：Surface Mount
• Package / Case：10-SMD Module
• Size / Dimension：1.50" L x 0.87" W x 0.35" H (38.1mm x 22.1mm x 8.9mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for PTH05020WAZ
