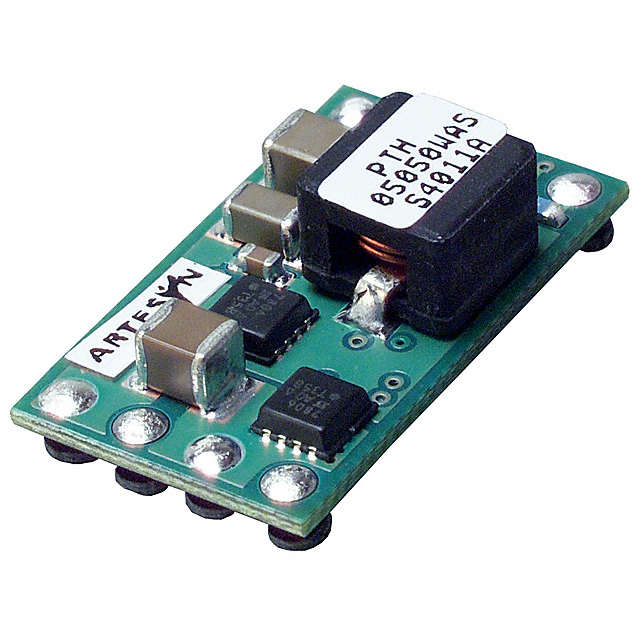

DC DC Converters PTH05050WAS product image

PTH05050WAS

Description：DC DC CONVERTER 0.8-3.6V 21W
Series：PTH05050W (21W)
Mfr：ARTESYN / Advanced Energy
Package：Tray

SKU:295b9ff606ab Category: DC DC Converters Brand: ARTESYN / Advanced Energy

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PTH05050WAS is listed in the DC DC Converters range at ChipApex. The manufacturer field lists ARTESYN / Advanced Energy. Its product description is DC DC CONVERTER 0.8-3.6V 21W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for PTH05050WAS

Description：DC DC CONVERTER 0.8-3.6V 21W
Series：PTH05050W (21W)
Mfr：ARTESYN / Advanced Energy
Package：Tray
Type：Non-Isolated PoL Module
Number of Outputs：1
Voltage - Input (Min)：4.5V
Voltage - Input (Max)：5.5V
Voltage - Output 1：0.8 ~ 3.6V
Voltage - Output 2：-
Voltage - Output 3：-
Voltage - Output 4：-
Current - Output (Max)：6A
Power (Watts)：21 W
Voltage - Isolation：-
Applications：ITE (Commercial)
Features：Remote On/Off, OCP, UVLO
Operating Temperature：-40°C ~ 85°C
Efficiency：95%
Mounting Type：Surface Mount
Package / Case：6-SMD Module
Size / Dimension：0.87" L x 0.50" W x 0.34" H (22.1mm x 12.7mm x 8.6mm)
Supplier Device Package：-
Control Features：-
Approval Agency：-
Standard Number：-
Grade：-
Qualification：-

DC DC Converters datasheet and documents for PTH05050WAS
