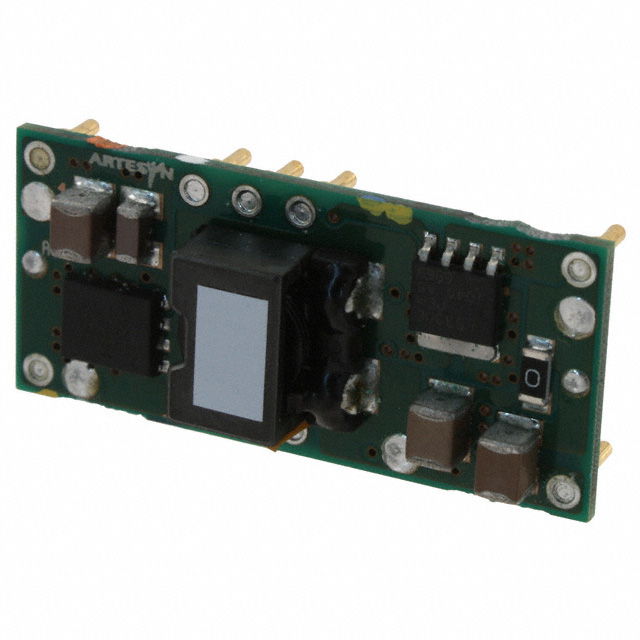

PTH12010YAD

PTH12010YAD is listed in the DC DC Converters range at ChipApex. The manufacturer field lists ARTESYN / Advanced Energy. Its product description is DC DC CONVERTER 0.55-1.8V 27W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for PTH12010YAD

• Description：DC DC CONVERTER 0.55-1.8V 27W
• Series：PTHxx010Y (27W)
• Mfr：ARTESYN / Advanced Energy
• Package：Tray
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：10.8V
• Voltage - Input (Max)：13.2V
• Voltage - Output 1：0.55 ~ 1.8V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：15A
• Power (Watts)：27 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, UVLO
• Operating Temperature：-40°C ~ 85°C
• Efficiency：85%
• Mounting Type：Through Hole
• Package / Case：10-DIP Module
• Size / Dimension：1.37" L x 0.62" W x 0.35" H (34.8mm x 15.8mm x 9.0mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for PTH12010YAD
