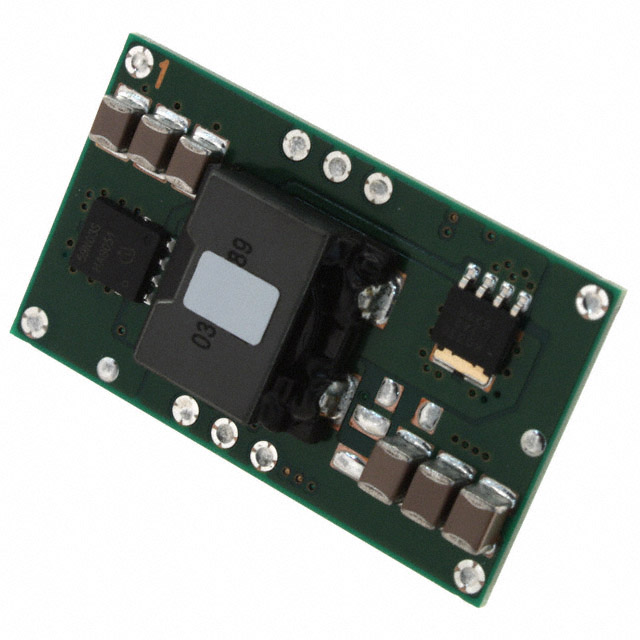

PTH12020WAZ

PTH12020WAZ is listed in the DC DC Converters range at ChipApex. The manufacturer field lists ARTESYN / Advanced Energy. Its product description is DC DC CONVERTER 1.2-5.5V 99W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for PTH12020WAZ

• Description：DC DC CONVERTER 1.2-5.5V 99W
• Series：PTH12020 (99W)
• Mfr：ARTESYN / Advanced Energy
• Package：Tray
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：10.8V
• Voltage - Input (Max)：13.2V
• Voltage - Output 1：1.2 ~ 5.5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：18A
• Power (Watts)：99 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Remote On/Off, OTP, SCP, UVLO
• Operating Temperature：-40°C ~ 85°C
• Efficiency：95%
• Mounting Type：Surface Mount
• Package / Case：10-SMD Module
• Size / Dimension：1.50" L x 0.87" W x 0.35" H (38.1mm x 22.1mm x 8.9mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for PTH12020WAZ
