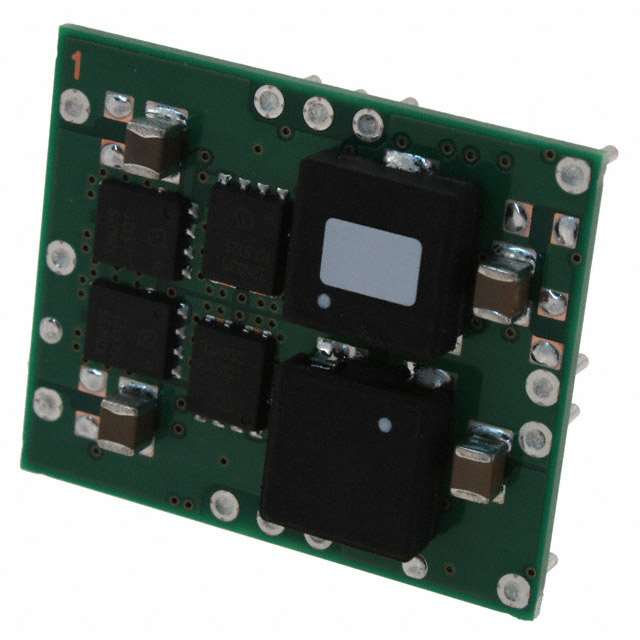

PTH12030WAD

PTH12030WAD is listed in the DC DC Converters range at ChipApex. The manufacturer field lists ARTESYN / Advanced Energy. Its product description is DC DC CONVERTER 1.2-5.5V 143W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for PTH12030WAD

• Description：DC DC CONVERTER 1.2-5.5V 143W
• Series：PTH12030 (143W)
• Mfr：ARTESYN / Advanced Energy
• Package：Tray
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：10.2V
• Voltage - Input (Max)：13.8V
• Voltage - Output 1：1.2 ~ 5.5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：26A
• Power (Watts)：143 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Remote On/Off, OTP, SCP, UVLO
• Operating Temperature：-40°C ~ 85°C
• Efficiency：94.50%
• Mounting Type：Through Hole
• Package / Case：13-DIP Module
• Size / Dimension：1.37" L x 1.12" W x 0.35" H (34.8mm x 28.5mm x 9.0mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for PTH12030WAD
