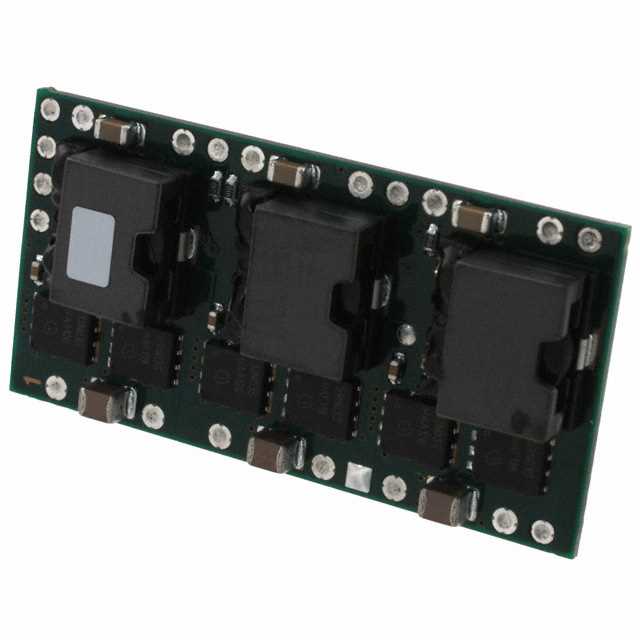

PTH12040WAZT

PTH12040WAZT is listed in the DC DC Converters range at ChipApex. The manufacturer field lists ARTESYN / Advanced Energy. Its product description is DC DC CONVERTER 0.8-5.5V 275W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for PTH12040WAZT

• Description：DC DC CONVERTER 0.8-5.5V 275W
• Series：PTH12040 (275W)
• Mfr：ARTESYN / Advanced Energy
• Package：Tape & Reel (TR)
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：8V
• Voltage - Input (Max)：14V
• Voltage - Output 1：0.8 ~ 5.5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：50A
• Power (Watts)：275 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Remote On/Off, OTP, SCP, UVLO
• Operating Temperature：-40°C ~ 85°C
• Efficiency：96%
• Mounting Type：Surface Mount
• Package / Case：20-SMD Module
• Size / Dimension：2.05" L x 1.05" W x 0.37" H (51.9mm x 26.5mm x 9.4mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for PTH12040WAZT
