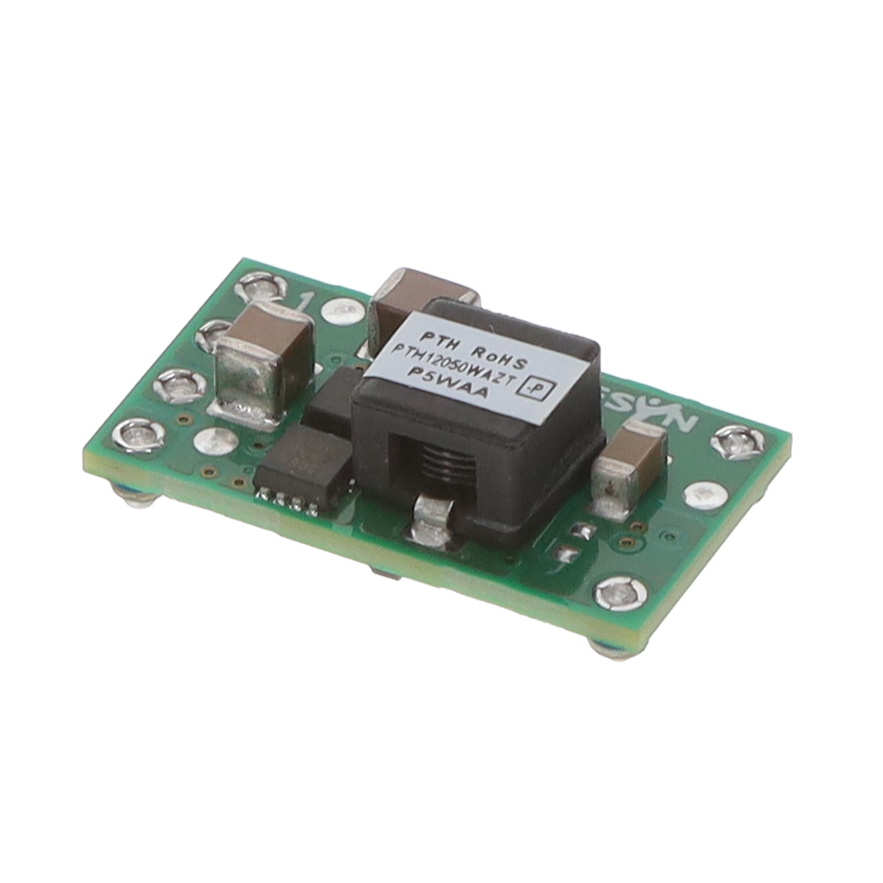

PTH12050WAZT

PTH12050WAZT is listed in the DC DC Converters range at ChipApex. The manufacturer field lists ARTESYN / Advanced Energy. Its product description is DC DC CONVERTER 1.2-5.5V 33W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for PTH12050WAZT

• Description：DC DC CONVERTER 1.2-5.5V 33W
• Series：PTH12050 (33W)
• Mfr：ARTESYN / Advanced Energy
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：10.8V
• Voltage - Input (Max)：13.2V
• Voltage - Output 1：1.2 ~ 5.5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：6A
• Power (Watts)：33 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Remote On/Off, SCP, UVLO
• Operating Temperature：-40°C ~ 85°C
• Efficiency：93%
• Mounting Type：Surface Mount
• Package / Case：6-SMD Module
• Size / Dimension：0.87" L x 0.50" W x 0.34" H (22.1mm x 12.7mm x 8.5mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for PTH12050WAZT
