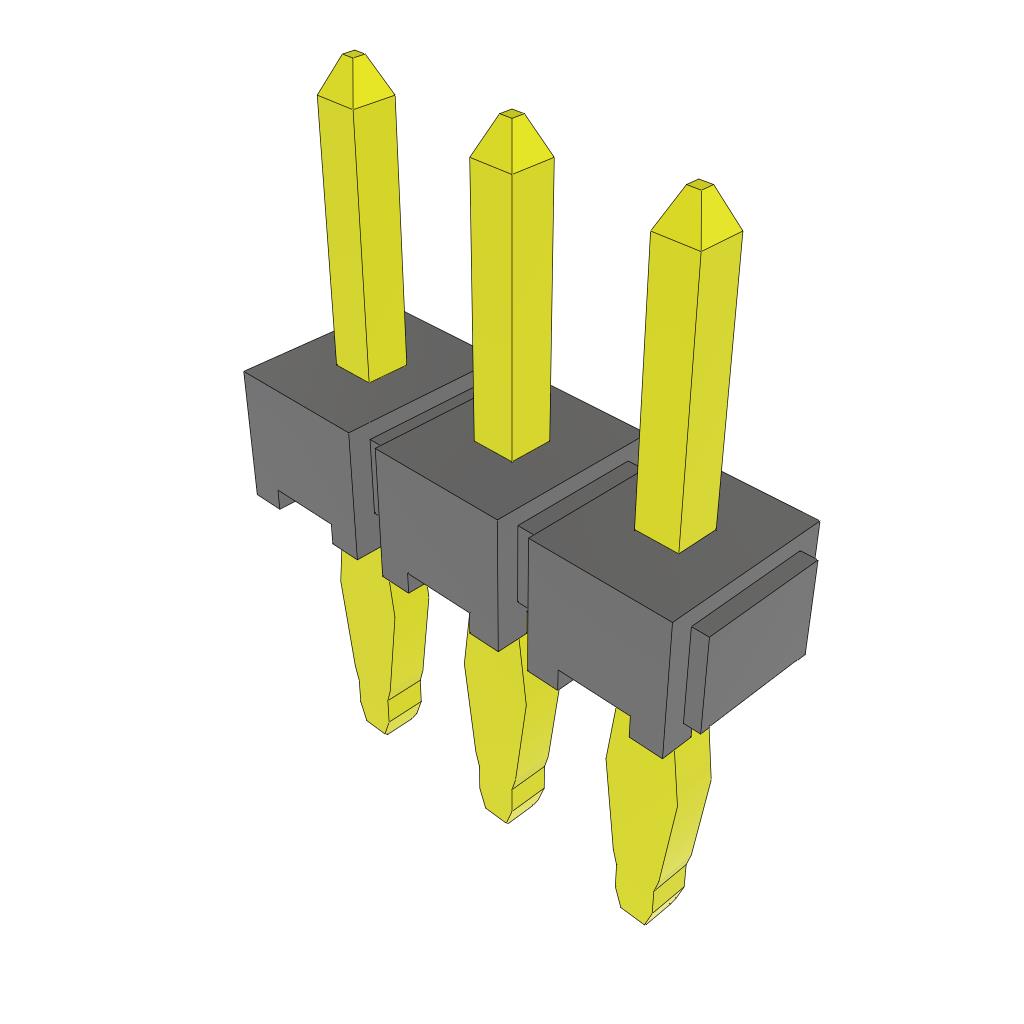

PTT-103-01-S-S is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is 2.00 MM PRESS-FIT TERMINAL STRIP. Review the specifications below when checking this part for your BOM.
Headers, Male Pins specifications for PTT-103-01-S-S
- Description：2.00 MM PRESS-FIT TERMINAL STRIP
- Series：PTT
- Mfr：Samtec Inc.
- Package：Bulk
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：3
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Press-Fit, Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.126" (3.20mm)
- Contact Length - Post：0.111" (2.82mm)
- Overall Contact Length：0.316" (8.03mm)
- Insulation Height：0.079" (2.00mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：30.0µin (0.76µm)
- Contact Finish - Post：Tin
- Contact Material：Phosphor Bronze
- Insulation Material：Liquid Crystal Polymer (LCP)
- Features：-
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：-
- Insulation Color：Black
- Current Rating (Amps)：2.9A per Contact
- Voltage Rating：-
Headers, Male Pins datasheet and documents for PTT-103-01-S-S
Headers, Male Pins Overview
The PTT-103-01-S-S is a board connector manufactured by Samtec Inc. It features three contacts arranged in a single row with male polarity. The connector utilizes a straight orientation and press-fit terminal style for PCB mounting. The contact pitch is specified as 0.078 inches. The insulator material is black. This component belongs to the PTT series of headers and wire housings.
Headers, Male Pins Feature Summary
- Utilizes press-fit terminal technology for secure board attachment
- Features gold plating in the contact area for reliable signal transmission
- Includes matte tin finish on the tail section for solderability
Headers, Male Pins Applications
- General-purpose board-to-board interconnection
- High-density electronic assembly integration
- Industrial control system header connections
Headers, Male Pins Procurement Notes
Verify the specific suffix codes against official Samtec documentation to ensure correct plating specifications and row configuration. Confirm that the press-fit termination style aligns with the target printed circuit board design requirements before finalizing procurement orders.
Headers, Male Pins Selection Notes
Select this part when a single-row, male header with press-fit termination is required. Ensure the 0.078-inch pitch matches the board layout constraints. Consider the gold contact plating for applications requiring low contact resistance and durability over multiple mating cycles.
Headers, Male Pins Part Context
This component is part of the Samtec PTT series, which provides 2.00 mm press-fit terminal strips. The series offers various configurations including different row counts and plating options to suit diverse electronic packaging needs within the headers and wire housings category.
Headers, Male Pins Replacement Considerations
Consult official Samtec substitution guides for compatible alternatives. Verify mechanical dimensions and electrical characteristics match the original design intent before replacing with other series components.
