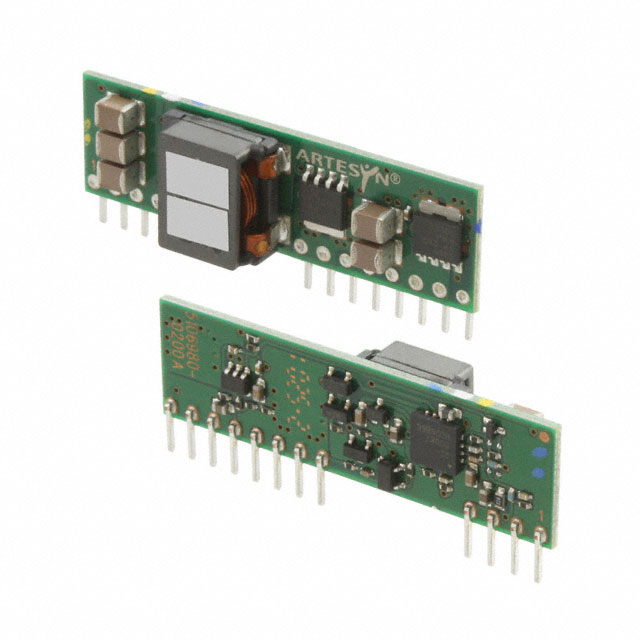

PTV12020LAD

PTV12020LAD is listed in the DC DC Converters range at ChipApex. The manufacturer field lists ARTESYN / Advanced Energy. Its product description is DC DC CONVERTER 0.8-1.8V 28.8W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for PTV12020LAD

• Description：DC DC CONVERTER 0.8-1.8V 28.8W
• Series：PTV12020 (88W)
• Mfr：ARTESYN / Advanced Energy
• Package：Tray
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：10.8V
• Voltage - Input (Max)：13.2V
• Voltage - Output 1：0.8 ~ 1.8V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：16A
• Power (Watts)：28.8 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OTP, UVLO
• Operating Temperature：-40°C ~ 85°C
• Efficiency：89%
• Mounting Type：Through Hole
• Package / Case：12-SIP Module
• Size / Dimension：1.75" L x 0.37" W x 0.50" H (44.5mm x 9.4mm x 12.7mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for PTV12020LAD
