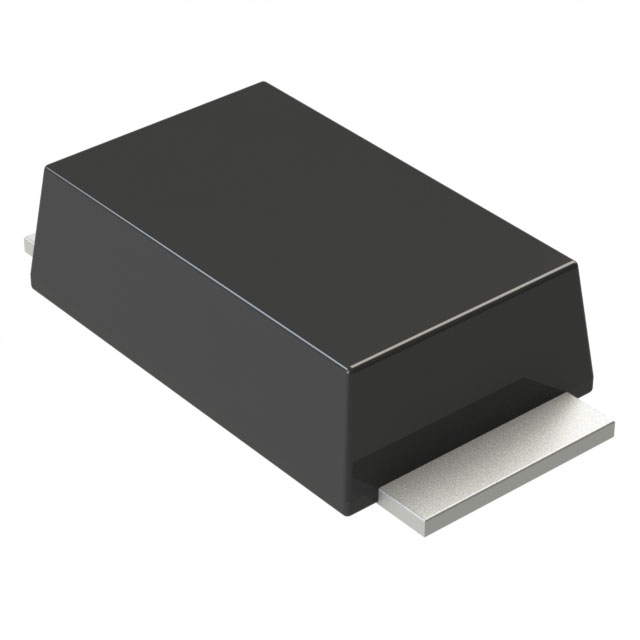

Tvs Diodes PTVS45VP1UP-QX product image

PTVS45VP1UP-QX

$0.14
  • Description：TVS DIODE 45VWM 72.7VC SOD1285
  • Series：PTVSxP1UP
  • Mfr：Nexperia USA Inc.
  • Package：Tape & Reel (TR)

SKU:cc7c4928bb69 Category: Brand:

　　
  • Quantity
    • -
    • +
    • 　　　
ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

PTVS45VP1UP-QX is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists Nexperia USA Inc.. Its product description is TVS DIODE 45VWM 72.7VC SOD1285. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for PTVS45VP1UP-QX

  • Description：TVS DIODE 45VWM 72.7VC SOD1285
  • Series：PTVSxP1UP
  • Mfr：Nexperia USA Inc.
  • Package：Tape & Reel (TR)
  • Type：Zener
  • Bidirectional Channels：-
  • Voltage - Reverse Standoff (Typ)：45V (Max)
  • Voltage - Breakdown (Min)：50V
  • Voltage - Clamping (Max) @ Ipp：72.7V
  • Current - Peak Pulse (10/1000µs)：8.3A
  • Power - Peak Pulse：600W
  • Power Line Protection：No
  • Applications：-
  • Capacitance @ Frequency：-
  • Operating Temperature：-55°C ~ 150°C (TA)
  • Mounting Type：Surface Mount
  • Package / Case：SOD-128
  • Supplier Device Package：SOD-128/CFP5
  • Unidirectional Channels：1
  • Grade：Automotive
  • Qualification：AEC-Q101

Tvs Diodes datasheet and documents for PTVS45VP1UP-QX

PTVS45VP1UP-QX

Explore related parts through Transient Voltage Suppressors (TVS), Circuit Protection, all product categories, ChipApex homepage.
