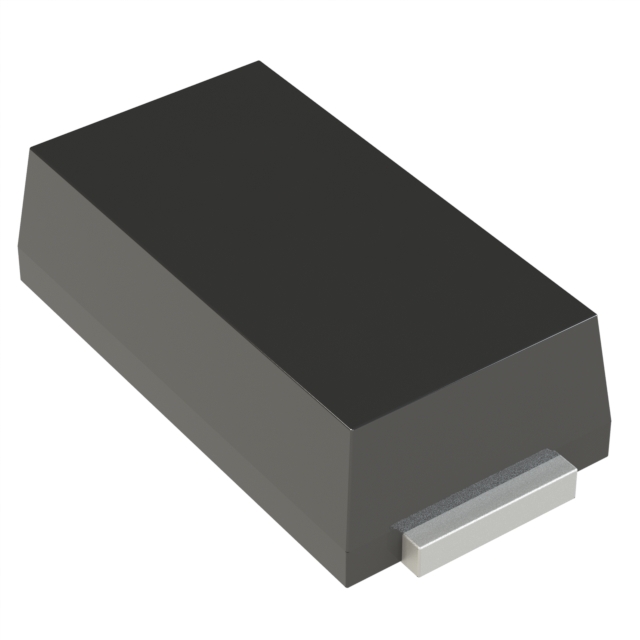

PU2DM

$0.47

Description：DIODE STANDARD 200V 2A MICRO SMA
Series：-
Mfr：Taiwan Semiconductor Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:167c1e57eed8 Category: Single Diodes Brand: Taiwan Semiconductor Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PU2DM is listed in the Single Diodes range at ChipApex. The manufacturer field lists Taiwan Semiconductor Corporation. Its product description is DIODE STANDARD 200V 2A MICRO SMA. Review the specifications below when checking this part for your BOM.

Single Diodes specifications for PU2DM

Description：DIODE STANDARD 200V 2A MICRO SMA
Series：-
Mfr：Taiwan Semiconductor Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：200 V
Current - Average Rectified (Io)：2A
Voltage - Forward (Vf) (Max) @ If：1.05 V @ 2 A
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：25 ns
Current - Reverse Leakage @ Vr：1 µA @ 200 V
Capacitance @ Vr, F：18pF @ 4V, 1MHz
Mounting Type：Surface Mount
Package / Case：2-SMD, Flat Leads
Supplier Device Package：Micro SMA
Operating Temperature - Junction：-55°C ~ 175°C
Grade：-
Qualification：-

Single Diodes datasheet and documents for PU2DM

PU2DM

Single Diodes Overview

The PU2DM is an ultra-fast recovery rectifier manufactured by Taiwan Semiconductor Corporation. It features a 200 V reverse voltage rating and a 2 A average forward current capability. The device exhibits a fast 25 ns reverse recovery time, suitable for high-frequency switching applications. It is housed in a Micro SMA surface-mount package, designed for compact circuit board layouts.

Single Diodes Feature Summary

Ultra-fast recovery characteristics for efficient high-speed switching
Surface-mount Micro SMA package for space-constrained designs
High thermal stability with extended operating temperature range

Single Diodes Applications

High-frequency DC-DC converters
Power supply freewheeling diodes
Snubber circuits in switching power supplies

Single Diodes Procurement Notes

Verify the specific ordering suffix to confirm packaging type, such as cut tape or reel quantities. Ensure compliance with RoHS and REACH directives as specified in the official datasheet. Confirm lead times directly with authorized distributors, as production cycles may vary based on demand and manufacturing schedules.

Single Diodes Selection Notes

Select this component when a low-profile surface-mount solution is required for 200 V applications. The 25 ns recovery time makes it appropriate for frequencies where standard recovery diodes would incur excessive losses. Compare thermal resistance values against system constraints to ensure adequate heat dissipation in the Micro SMA footprint.

Single Diodes Part Context

Taiwan Semiconductor Corporation specializes in discrete semiconductor devices, including rectifiers and MOSFETs. The PU2DM belongs to their ultra-fast recovery rectifier lineup, targeting modern power electronics that demand efficiency and miniaturization. The company maintains quality certifications relevant to automotive and industrial sectors.
