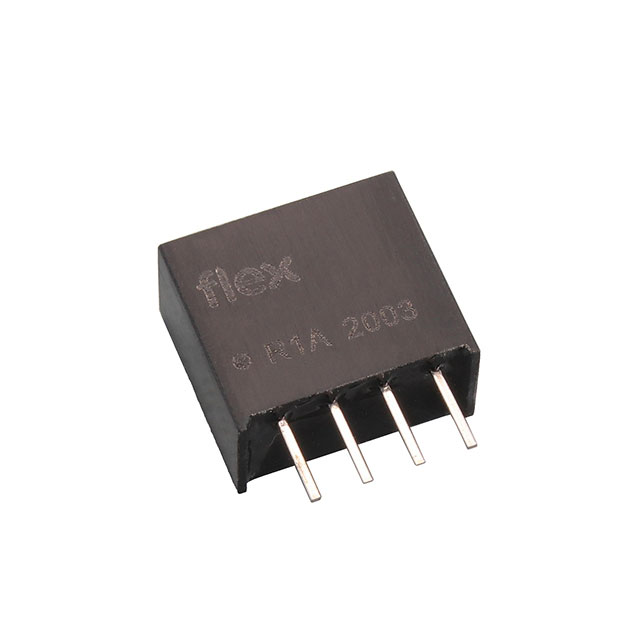

PUA1212S1A is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Flex Power Modules. Its product description is DC DC CONVERTER 12V 1W. Review the specifications below when checking this part for your BOM.
DC DC Converters specifications for PUA1212S1A
- Description：DC DC CONVERTER 12V 1W
- Series：PUA-1A (1W)
- Mfr：Flex Power Modules
- Package：Tube
- Type：Isolated Module
- Number of Outputs：1
- Voltage - Input (Min)：10.8V
- Voltage - Input (Max)：13.2V
- Voltage - Output 1：12V
- Voltage - Output 2：-
- Voltage - Output 3：-
- Voltage - Output 4：-
- Current - Output (Max)：84mA
- Power (Watts)：1 W
- Voltage - Isolation：2 kV
- Applications：ITE (Commercial)
- Features：-
- Operating Temperature：-40°C ~ 100°C (With Derating)
- Efficiency：80%
- Mounting Type：Through Hole
- Package / Case：4-SIP Module
- Size / Dimension：0.46" L x 0.24" W x 0.40" H (11.6mm x 6.0mm x 10.2mm)
- Supplier Device Package：-
- Control Features：-
- Approval Agency：cURus, IEC, UL
- Standard Number：62368-1
- Grade：-
- Qualification：-
DC DC Converters datasheet and documents for PUA1212S1A
