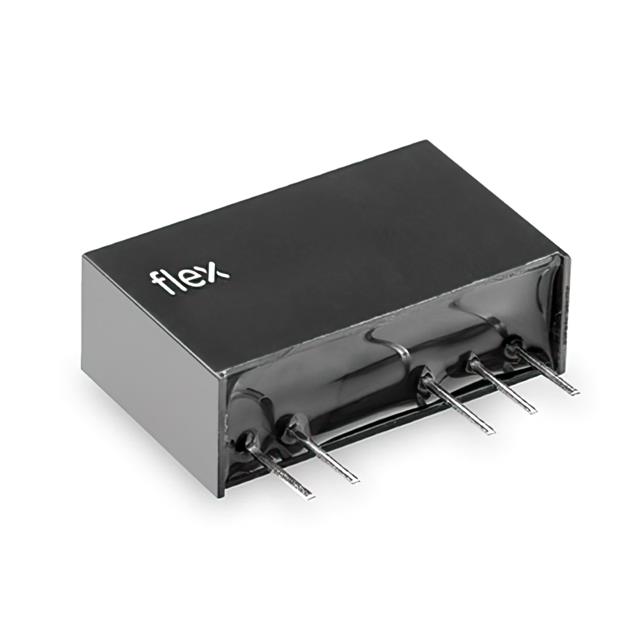

PUC1520050D2BG

PUC1520050D2BG is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Flex Power Modules. Its product description is 13.5-16.5VIN; +20 / -5V OUT; ISO. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for PUC1520050D2BG

• Description：13.5-16.5VIN; +20 / -5V OUT; ISO
• Series：PUC-D2BG (2W)
• Mfr：Flex Power Modules
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：13.5V
• Voltage - Input (Max)：14.85V
• Voltage - Output 1：20V
• Voltage - Output 2：-5V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：80mA, 80mA
• Power (Watts)：2 W
• Voltage - Isolation：6.2 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 100°C
• Efficiency：80%
• Mounting Type：Through Hole
• Package / Case：7-SIP Module, 5 Leads
• Size / Dimension：0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：cURus, UL
• Standard Number：62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for PUC1520050D2BG
