PUMF12,115

Overview

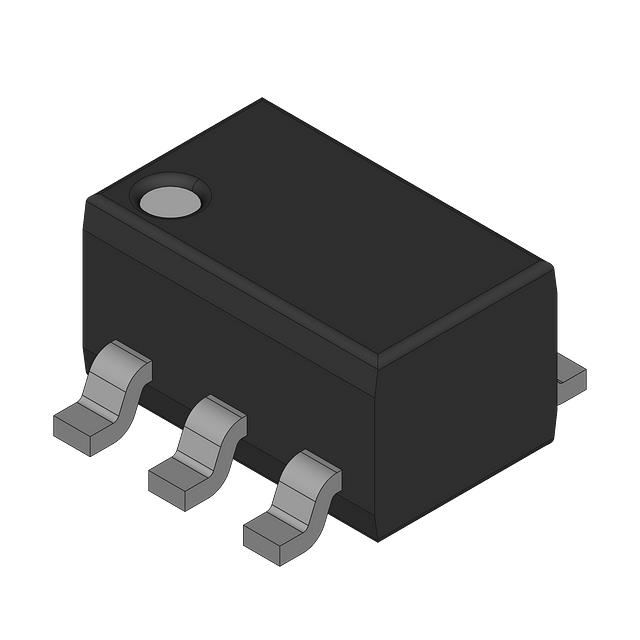

The PUMF12,115 is a dual transistor array manufactured by Nexperia USA Inc., housed in a SOT-363 (SC-88) surface-mount package. It integrates one NPN resistor-equipped transistor and one general-purpose PNP transistor within a single component. The device supports a maximum collector current of 100 mA and a collector-emitter voltage rating of 50 V. Total power dissipation is rated at 300 mW. This configuration allows for the replacement of two separate SOT-323 devices on a printed circuit board, thereby reducing assembly costs and saving space.

Feature Summary

Integrates an NPN resistor-equipped transistor and a general-purpose PNP transistor into a single compact package
Provides significant PCB area reduction compared to using two individual SOT-323 components
Designed to reduce pick-and-place manufacturing costs through consolidated component usage

Applications

Power management switching for portable equipment such as cellular phones
Switching applications for CD players and similar audio devices
Regulator switching circuits

Part Context

This component belongs to Nexperia's portfolio of pre-biased and dual transistor arrays designed for space-constrained consumer electronics. The SOT-363 package is a standard plastic surface-mount form factor widely used in mobile and portable device designs where board real estate is limited. The integration of distinct NPN and PNP functions facilitates mixed-signal logic interfacing.
