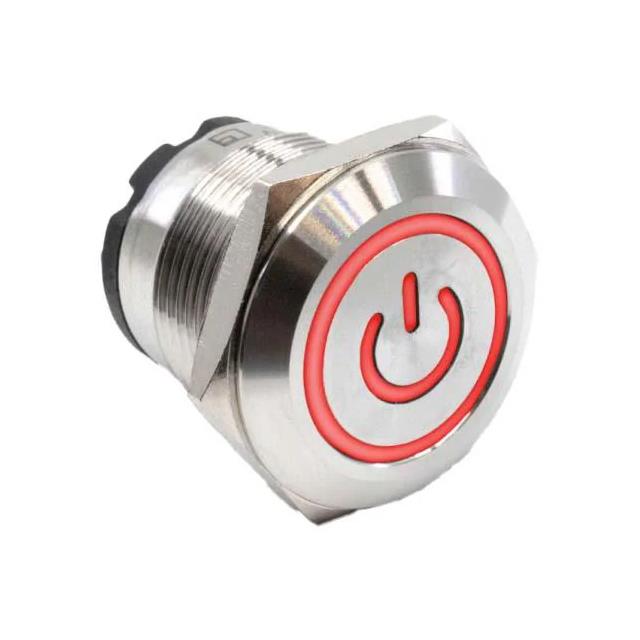

PVHC4F23SS314 is listed in the Pushbutton Switches range at ChipApex. The manufacturer field lists E-Switch. Its product description is ANTI-VANDAL, 20A, SPST, CIRCULAR. Review the specifications below when checking this part for your BOM.
Pushbutton Switches specifications for PVHC4F23SS314
- Description：ANTI-VANDAL, 20A, SPST, CIRCULAR
- Series：PVHC4
- Mfr：E-Switch
- Package：Box
- Mounting Type：Panel Mount, Front
- Type：Anti-Vandal, Illuminated
- Circuit：SPST
- Switch Function：Off-On
- Current Rating (Amps)：20A (AC), 25A (DC)
- Actuator Type：Round, Button, Flush
- Actuator Marking：-
- Color - Actuator/Cap：Silver
- Illumination Type, Color：LED, Red
- Illumination Voltage (Nominal)：12 VDC
- Termination Style：Solder, Quick Connect - 0.187" (4.7mm)
- Ingress Protection：IP67 - Dust Tight, Waterproof
- Features：-
- Panel Cutout Dimensions：Circular - 19.00mm Dia
- Operating Temperature：-40°C ~ 85°C
- Voltage Rating - DC：30 V
- Voltage Rating - AC：250 V
Pushbutton Switches datasheet and documents for PVHC4F23SS314
