PVI5013RSPBF

Description：OPTOISO 3.75KV 2CH PHVOLT 8-SMD
Series：PVI
Mfr：Infineon Technologies
Package：Tube

SKU:aec947fe28d0 Category: Transistor, Photovoltaic Output Optoisolators Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：OPTOISO 3.75KV 2CH PHVOLT 8-SMD
Series：PVI
Mfr：Infineon Technologies
Package：Tube
Number of Channels：2
Voltage - Isolation：3750Vrms
Current Transfer Ratio (Min)：-
Current Transfer Ratio (Max)：-
Turn On / Turn Off Time (Typ)：5ms, 250µs (Max)
Rise / Fall Time (Typ)：-
Input Type：DC
Output Type：Photovoltaic
Voltage - Output (Max)：8V
Current - Output / Channel：1µA
Voltage - Forward (Vf) (Typ)：-
Current - DC Forward (If) (Max)：-
Vce Saturation (Max)：-
Operating Temperature：-40°C ~ 85°C
Mounting Type：Surface Mount
Package / Case：8-SMD, Gull Wing
Supplier Device Package：8-SMD
Grade：-
Qualification：-

Download product information

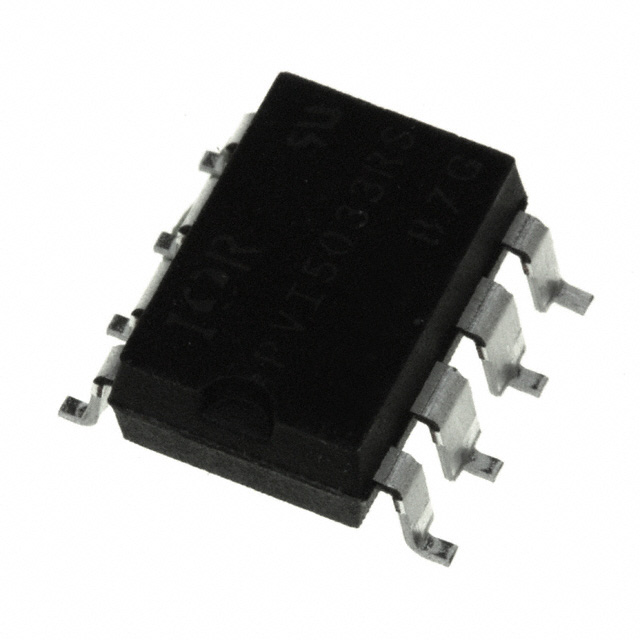

PVI5013RSPBF

Overview

The PVI5013RSPBF is a photodiode output optocoupler manufactured by Infineon Technologies, housed in an SOIC-8 surface-mount package. It features two channels with a photovoltaic output type and provides an insulation voltage of 3750 Vrms. The device supports a maximum forward current of 5 mA and has a forward voltage of 8 V, with a reverse voltage rating of 6 V. It operates within a temperature range of -40°C to +85°C. This component is classified as obsolete.

Feature Summary

Provides galvanic isolation via photovoltaic output mechanism
Dual-channel configuration for independent signal transmission
High insulation voltage capability for safety-critical applications

Applications

Microelectronic relay interfaces
Signal isolation in industrial control systems
Data communication circuits requiring high isolation

Procurement Notes

This component is officially designated as obsolete or not recommended for new designs. Availability is limited to existing stock or surplus markets. Verify authenticity and storage conditions carefully due to potential age-related degradation. Sourcing may involve longer lead times from secondary distributors. Confirm end-of-life status with the manufacturer before finalizing procurement plans.

Selection Notes

Due to the obsolete status, this part is unsuitable for new product development. Engineers should evaluate alternative components from the same family or newer generations that offer similar electrical characteristics and packaging. Consider redesigning to accommodate currently supported devices to ensure long-term supply chain stability and compliance.

Part Context

The PVI5013RSPBF belongs to Infineon's photodiode output optocoupler series, designed for applications requiring reliable signal isolation. It shares functional similarities with other models like the PVI5033RSPBF but differs in specific electrical ratings such as forward current. The SOIC-8 package allows for compact PCB integration in surface-mount assembly processes.
