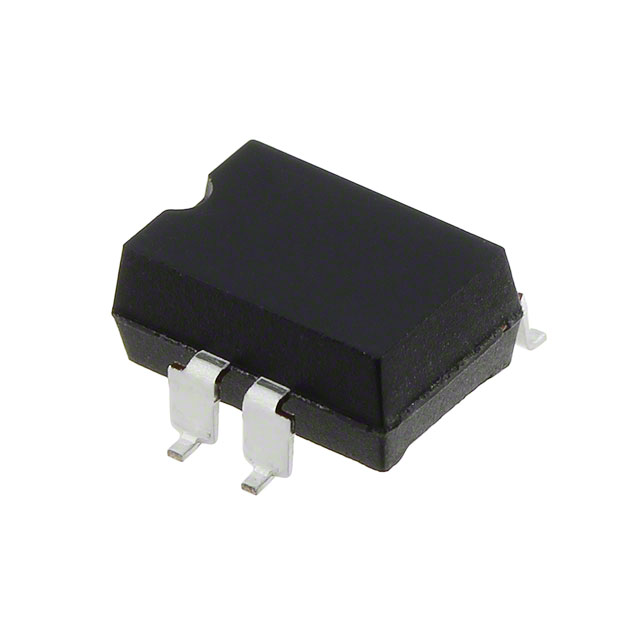

PVI5050NSPBF

$6.78

Description：OPTOISOLTR 4KV 1CH PHVOLT 8-SMD
Series：PVI
Mfr：Infineon Technologies
Package：Tube

SKU:de55722e2b16 Category: Transistor, Photovoltaic Output Optoisolators Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：OPTOISOLTR 4KV 1CH PHVOLT 8-SMD
Series：PVI
Mfr：Infineon Technologies
Package：Tube
Number of Channels：1
Voltage - Isolation：4000Vrms
Current Transfer Ratio (Min)：-
Current Transfer Ratio (Max)：-
Turn On / Turn Off Time (Typ)：300µs, 220µs (Max)
Rise / Fall Time (Typ)：-
Input Type：DC
Output Type：Photovoltaic
Voltage - Output (Max)：5V
Current - Output / Channel：5µA
Voltage - Forward (Vf) (Typ)：-
Current - DC Forward (If) (Max)：-
Vce Saturation (Max)：-
Operating Temperature：-40°C ~ 85°C
Mounting Type：Surface Mount
Package / Case：8-SMD, Gull Wing, 4 Leads
Supplier Device Package：8-SMD
Grade：-
Qualification：-

Download product information

PVI5050NSPBF

Overview

The PVI5050NSPBF is a photovoltaic output optocoupler manufactured by Infineon Technologies. It features a single Form A channel with an SMD-4 surface-mount package. Key electrical parameters include an isolation voltage of 2500 Vrms, a forward current range of 2 mA to 50 mA, and a forward voltage of 8 V. The device supports a reverse voltage of 6 V and operates within a temperature range of -40°C to +85°C. This component utilizes Microelectronic Relay (MER) technology for high reliability.

Feature Summary

Utilizes Microelectronic Relay (MER) technology for robust signal isolation
Provides galvanic isolation between input and output circuits
Designed for surface-mount assembly in compact electronic systems

Applications

Microelectronic relay implementations
High-reliability signal isolation interfaces
Photovoltaic isolator circuits

Procurement Notes

Verify the lifecycle status as Not Recommended for New Designs (NRND) before integration into new products. Confirm RoHS compliance details and moisture sensitivity handling requirements during storage and assembly. Ensure the SMD-4 package footprint matches the design layout. Check for any specific ordering suffixes that may affect availability or specifications.

Selection Notes

Select this component when a single-channel photovoltaic isolator with MER technology is required. Consider the 2500 Vrms isolation rating for safety applications. Evaluate the SMD-4 package constraints against board space limitations. Compare performance characteristics with dual-channel alternatives if multiple isolated signals are needed.

Part Context

This part belongs to Infineon's photovoltaic isolator family, which employs Microelectronic Relay technology. These devices offer high isolation voltages and low leakage currents. The PVI series is distinct from transistor-output optocouplers, providing a passive output suitable for specific sensing and switching applications requiring high durability.
