PVT3F851EMC

Overview

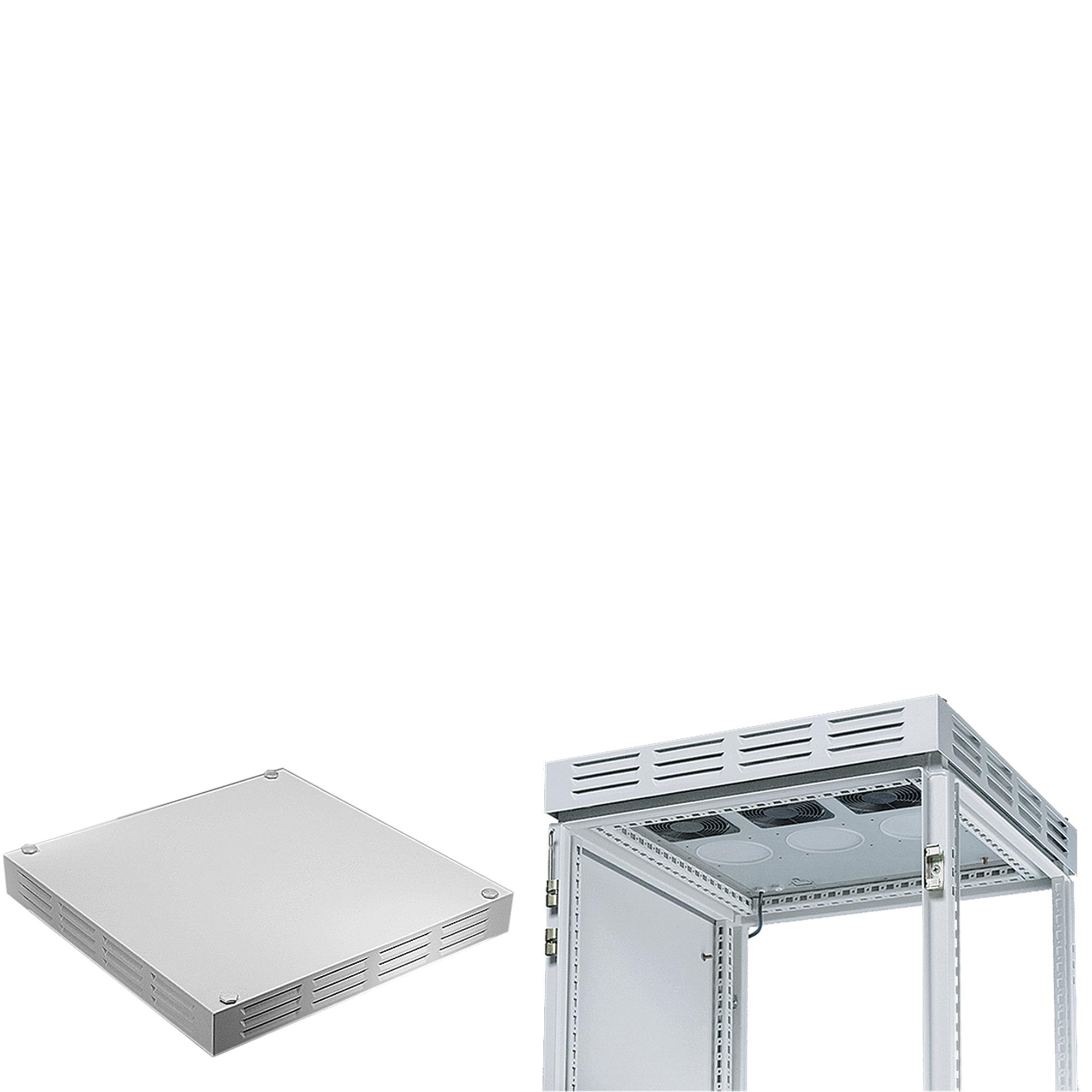

The PVT3F851EMC is a vented top assembly manufactured by Hoffman Enclosures, Inc., designed for integration with the Proline P20EM series. Constructed from steel and finished in light gray, this component serves as a modular enclosure roof featuring an integrated fan tray system. It accommodates three integral fans to facilitate active thermal management within the enclosure structure. The unit is engineered specifically for use with 800 mm wide by 500 mm deep frame configurations, ensuring structural compatibility and standardized mounting interfaces for industrial applications requiring enhanced airflow.

Feature Summary

• Integrates a dedicated fan tray system with three built-in cooling fans for active heat dissipation
• Constructed from durable steel material with a light gray finish suitable for industrial environments
• Designed as a modular vented top assembly compatible with specific Proline frame dimensions

Applications

• Industrial control panels requiring active thermal regulation
• Modular enclosure systems utilizing 800 mm width frames
• Equipment housings needing enhanced ventilation through integrated fan trays

Procurement Notes

Verify that the target enclosure frame matches the required 800 mm width and 500 mm depth specifications before procurement. Confirm that the electrical supply aligns with the fan tray voltage rating of 115 V and frequency requirements of 50/60 Hz. Ensure the installation environment supports the steel construction and light gray finish characteristics. Cross-reference the Proline P20EM series documentation to validate mechanical fitment and mounting hole patterns for the vented top assembly.

Selection Notes

Select this component when passive ventilation is insufficient for the internal heat load of an 800 mm wide enclosure. This part is intended for users requiring a complete vented top solution with pre-installed fans rather than retrofitting individual units. Consider the steel body material for robustness compared to polymer alternatives. Ensure the application utilizes the Proline P20EM frame series to guarantee proper alignment and secure attachment of the vented top module.

Part Context

This part belongs to the Hoffman Proline product line, which offers modular enclosure solutions for industrial automation. The PVT3F851EMC functions as a specialized accessory or structural component within this ecosystem, specifically addressing thermal management needs. It complements other Proline elements by providing a standardized interface for cooling integration into larger frame assemblies.

Replacement Considerations

No public confirmed substitute part numbers are available.
