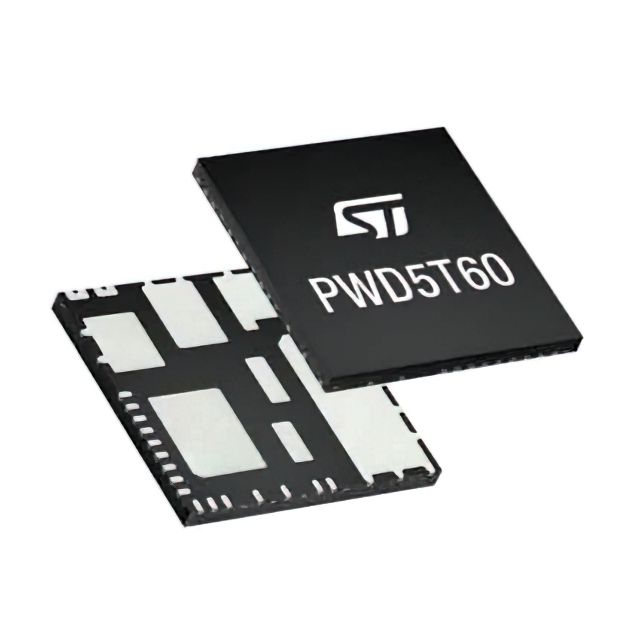

PWD5T60TR

$5.21

Description：COMPACT HIGH-VOLTAGE THREE-PHASE
Series：-
Mfr：STMicroelectronics
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:61947b297975 Category: Motor Drivers, Controllers Brand: STMicroelectronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：COMPACT HIGH-VOLTAGE THREE-PHASE
Series：-
Mfr：STMicroelectronics
Package：Tape & Reel (TR),Cut Tape (CT)
Motor Type - Stepper：Multiphase
Motor Type - AC, DC：Brushless DC (BLDC)
Function：Driver - Fully Integrated, Control and Power Stage
Output Configuration：Half Bridge (3)
Interface：Logic
Technology：Power MOSFET
Step Resolution：-
Applications：General Purpose
Current - Output：3.5A
Voltage - Supply：9V ~ 20V
Voltage - Load：10V ~ 400V
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Surface Mount
Package / Case：36-PowerVQFN
Supplier Device Package：36-VFQFPN (12x12)
Grade：-
Qualification：-

Download product information

PWD5T60TR

Overview

The PWD5T60TR is a compact, high-voltage three-phase power stage integrating a gate driver and six N-channel power MOSFETs. It features an RDS(on) of 1.38Ω and a BV(DSS) of 500V. The device operates with a wide input supply voltage range from 9V to 20V. It includes integrated zero-drop bootstrap diodes, fast overcurrent protection with Smart ShutDown, and overtemperature protection. Logic inputs are compatible with 3.3V and 5V TTL/CMOS standards. The component utilizes a VFQFPN package for simplified PCB layout.

Feature Summary

Integrates gate driver and six high-voltage N-channel power MOSFETs in a single compact package
Provides fast overcurrent protection via comparator with Smart ShutDown functionality
Features matched propagation delay across all channels for distortion-free high-frequency operation
Includes UVLO on low-side and high-side, interlocking, and deadtime functions for robust fault prevention

Applications

Three-phase inverters
Fans and pumps
Home appliances
Refrigerator compressors

Procurement Notes

Verify the specific suffix TR indicates tape-and-reel packaging when sourcing. Confirm the manufacturer is STMicroelectronics to ensure authenticity. Check RoHS compliance status as required by project specifications. Ensure the ordering part number matches the exact electrical parameters documented in the official datasheet.

Selection Notes

Select this component for space-constrained applications requiring high integration. It is suitable for motor drives up to 500V. Consider its compatibility with 3.3V and 5V logic interfaces. Evaluate its thermal performance against application requirements. Verify that the integrated protection features meet system safety standards.

Part Context

This part belongs to STMicroelectronics' PWD series of high-density power drivers. It is designed to replace discrete solutions, reducing bill-of-materials area significantly. The series targets efficient driving of loads in small appliances and industrial equipment where footprint is critical.
