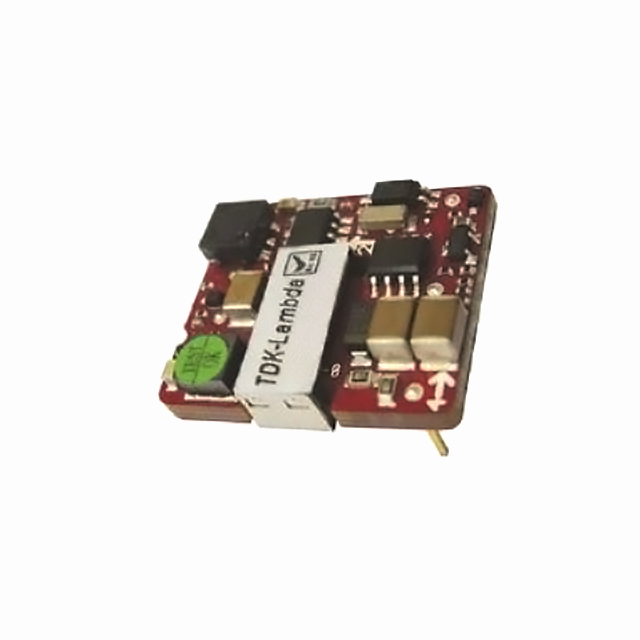

PXA15-48WS12/NT

PXA15-48WS12/NT is listed in the DC DC Converters range at ChipApex. The manufacturer field lists TDK-Lambda. Its product description is DC DC CONVERTER 12V 15W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for PXA15-48WS12/NT

• Description：DC DC CONVERTER 12V 15W
• Series：PXA (15W)
• Mfr：TDK-Lambda
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：75V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：1.3A
• Power (Watts)：15 W
• Voltage - Isolation：2.25 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off
• Operating Temperature：-40°C ~ 85°C
• Efficiency：86%
• Mounting Type：Through Hole
• Package / Case：6-DIP Module
• Size / Dimension：0.94" L x 1.10" W x 0.34" H (23.9mm x 27.9mm x 8.5mm)
• Supplier Device Package：-
• Control Features：Enable, Active Low
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for PXA15-48WS12/NT
