PZ1AL6V0B_R1_00001

Single Zener Diodes Overview

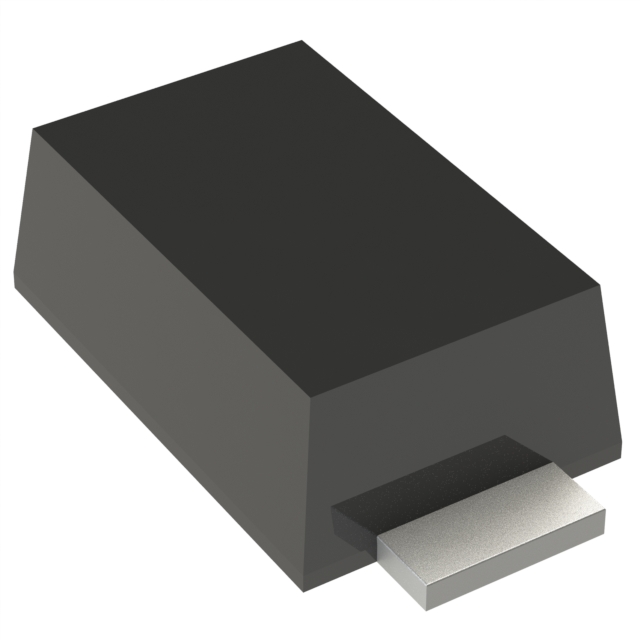

The PZ1AL6V0B_R1_00001 is a Zener diode manufactured by Panjit International Inc., designed for voltage regulation and reference applications. It features a nominal Zener voltage of 6V with a power dissipation rating of 1000mW. The component utilizes the SOD-123FL surface-mount package, ensuring compact integration into modern circuit boards. It holds AEC-Q101 qualification, indicating suitability for automotive electronics environments. The device operates within a standard temperature range and provides stable performance for general-purpose voltage clamping tasks.

Single Zener Diodes Feature Summary

• AEC-Q101 qualified for automotive reliability standards
• Compact SOD-123FL surface-mount footprint
• 1000mW power dissipation capability
• Stable 6V Zener voltage regulation

Single Zener Diodes Applications

• Automotive voltage reference circuits
• General-purpose voltage clamping
• Power supply protection stages

Single Zener Diodes Procurement Notes

Verify the specific suffix R1 against the official datasheet to confirm packaging details and reel specifications. Ensure the part number matches the exact electrical characteristics required for the target application. Cross-reference with Panjit's official documentation to validate RoHS compliance status and any recent product change notifications before finalizing procurement orders.

Single Zener Diodes Selection Notes

Select this component when a 6V regulation point is required in an automotive or high-reliability context. The SOD-123FL package offers space efficiency compared to larger through-hole alternatives. Consider the 1000mW power rating to ensure adequate thermal headroom under continuous operating conditions. Verify that the AEC-Q101 qualification aligns with the system's environmental stress requirements.

Single Zener Diodes Part Context

This part belongs to Panjit's ZSM-10FL series of Zener diodes. The series is characterized by its small outline package design and robust construction suitable for automated assembly processes. It serves as a specialized variant within the broader diode portfolio, focusing on precise voltage control in constrained physical spaces.

Single Zener Diodes Replacement Considerations

Consult Panjit's official substitution guide for direct equivalents. Generic replacements must match the 6V Zener voltage, 1000mW power rating, and SOD-123FL package dimensions. Verify that any substitute also meets AEC-Q101 automotive qualification if used in vehicle systems.
