PZC01DFAN

$0.55

Description：CONN HEADER VERT 2POS
Series：-
Mfr：Sullins Connector Solutions
Package：Bulk

SKU:46706681c349 Category: Headers, Male Pins Brand: Sullins Connector Solutions

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

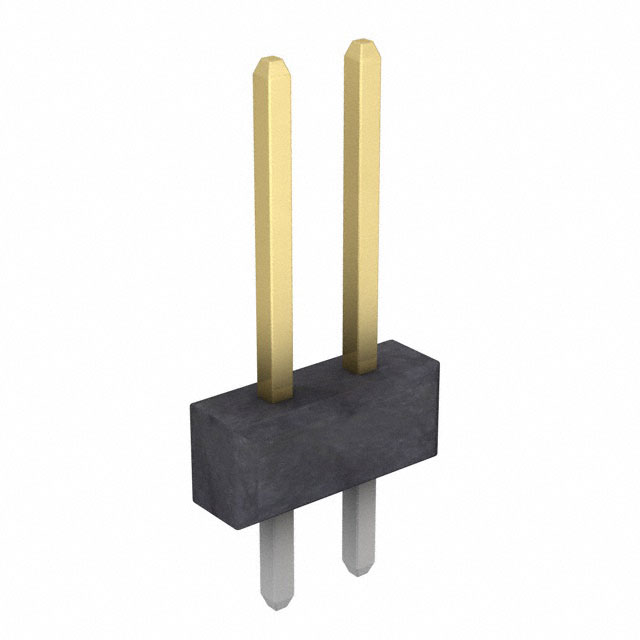

PZC01DFAN is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Sullins Connector Solutions. Its product description is CONN HEADER VERT 2POS. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for PZC01DFAN

Description：CONN HEADER VERT 2POS
Series：-
Mfr：Sullins Connector Solutions
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：-
Number of Positions：2
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.318" (8.08mm)
Contact Length - Post：0.120" (3.05mm)
Overall Contact Length：0.538" (13.67mm)
Insulation Height：0.100" (2.54mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：10.0µin (0.25µm)
Contact Finish - Post：Tin
Contact Material：Copper Alloy
Insulation Material：Thermoplastic, Polyester
Features：-
Operating Temperature：-
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：-

Headers, Male Pins datasheet and documents for PZC01DFAN

PZC01DFAN

Headers, Male Pins Overview

The PZC01DFAN is a vertical male header connector manufactured by Sullins Connector Solutions. It features a 2.54mm pitch spacing and provides one position in a single row configuration. The connector utilizes square-shaped pins with tin plating on both the mating and post sections, each having a thickness of 100.0µin (2.54µm). Constructed from phosphor bronze contacts and black polybutylene terephthalate insulation rated UL94 V-0, it supports through-hole solder termination. Designed for board-to-board or cable applications, it operates within a temperature range of -65°C to 125°C and carries a 3A current rating.
