PZC273A

Overview

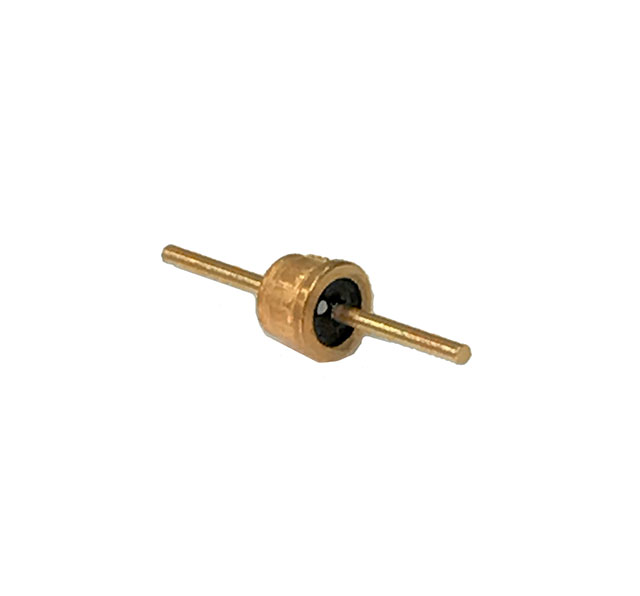

The PZC273A is a feed-through capacitor manufactured by EMI Filter Company. It features an axial configuration with a bushing mount style. The component has a capacitance of 0.027 µF and a voltage rating of 50V. It supports a current capacity of 10 A. The package type is described as axial, bushing.

Feature Summary

• Utilizes a press-in talon grip mechanism for secure mounting
• Designed as an EMI filter for noise suppression
• Constructed as a feed-through capacitor

Applications

• EMI filtering applications
• Noise suppression circuits

Procurement Notes

Verify the manufacturer designation carefully, as sources list both 'EMI FILTER COMPANY' and 'EMI Filter Co'. Confirm the specific mounting interface matches the 'press-in talon grip' description. Ensure the 50V rating and 0.027 µF capacitance align with circuit requirements. Cross-reference datasheets from different distributors to ensure consistency in part identification and specifications.

Selection Notes

Select this component for applications requiring axial feed-through filtering with a bushing mount. The 50V rating and 10 A current capacity define its electrical limits. Consider the press-in talon grip feature for installation method compatibility. Verify that the 0.027 µF capacitance meets the specific filtering needs of the design.

Part Context

This component belongs to the category of feed-through capacitors used for electromagnetic interference suppression. It is distinct from standard chip or through-hole capacitors due to its integrated filter structure and bushing mount. The axial design allows for direct panel or chassis mounting via the specified grip mechanism.
