Q 24,0-JXS22-10-10/15-T1-FU-WA-LF

Crystals Overview

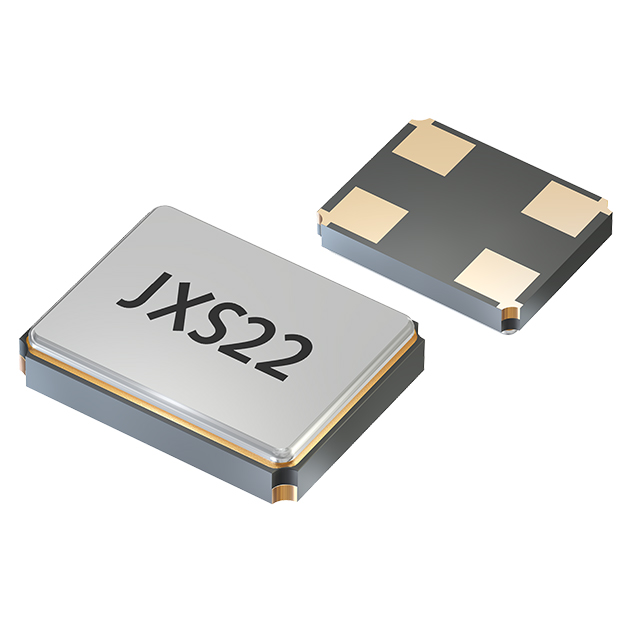

The Q 24,0-JXS22-10-10/15-T1-FU-WA-LF is a surface-mount quartz crystal manufactured by Jauch Quartz. It operates at a nominal frequency of 24 MHz with a load capacitance of 10 pF and an equivalent series resistance (ESR) of 50 Ohms. The component features a normal temperature frequency tolerance of ±10 ppm and a frequency stability of 15 ppm. It is housed in a 4-SMD, no lead package measuring 2.50mm x 2.00mm. The device supports an operating temperature range of -40°C to +85°C and complies with RoHS standards.

Crystals Feature Summary

• Provides precise timing control for electronic circuits through stable quartz resonance.
• Designed for surface-mount assembly to facilitate automated manufacturing processes.
• Constructed without lead content to meet environmental compliance requirements.

Crystals Applications

• Clock signal generation in microcontroller-based systems
• Timing references in communication modules
• Frequency control in consumer electronics devices

Crystals Procurement Notes

Verify the specific load capacitance requirement of your circuit design against the component's 10 pF specification to ensure accurate frequency operation. Confirm that the PCB footprint matches the 2.50mm x 2.00mm 4-SMD package dimensions. Ensure that the selected components are sourced from authorized distributors to guarantee authenticity and adherence to the stated RoHS compliance standards.

Crystals Selection Notes

Select this component when a 24 MHz reference frequency is required for applications needing ±10 ppm initial tolerance. Consider the 10 pF load capacitance compatibility with the oscillator circuit design. Evaluate the -40°C to +85°C operating range against the environmental conditions of the final product. Compare the 50 Ohm ESR with the oscillator driver strength to prevent over-driving or failure to start.

Crystals Part Context

This part belongs to the JXS22-WA series of surface-mount crystals from Jauch Quartz. The series offers various load capacitance options and frequency tolerances within a compact form factor. These components are engineered for high reliability and consistent performance across industrial and commercial temperature ranges, supporting modern miniaturized electronic designs.

Crystals Replacement Considerations

Direct substitutes include other 24 MHz SMD crystals with identical 10 pF load capacitance, 50 Ohm ESR, and 4-SMD 2.50x2.00mm packaging. Verify that alternative manufacturers offer matching frequency stability and temperature range specifications. Ensure that any replacement maintains the same pin configuration and mechanical dimensions for seamless board integration.
