Q 38,40-JXS11-12-10/10-FU-LF

Crystals Overview

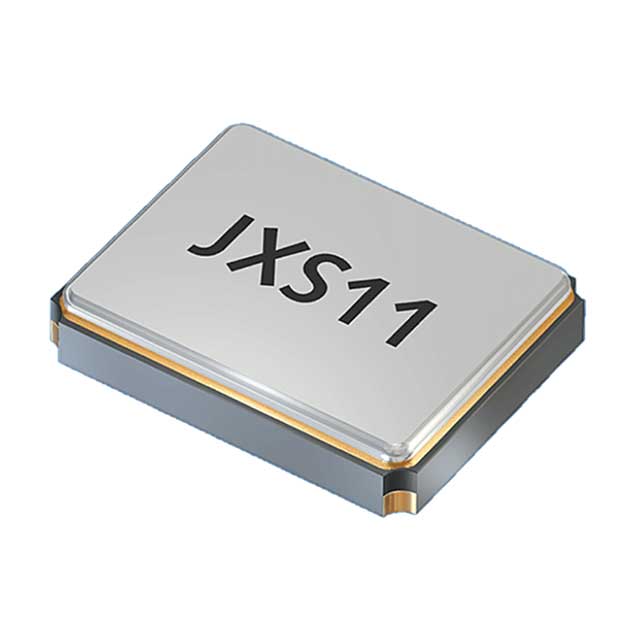

The Q 38,40-JXS11-12-10/10-FU-LF is a parallel fundamental quartz crystal manufactured by Jauch Quartz. It operates at a nominal frequency of 38.4 MHz with a load capacitance of 12 pF and a frequency tolerance of ±10 ppm. The component utilizes an AT cut design and features a surface mount package with four pins and no leads. Physical dimensions are 1.60mm in length and 1.20mm in width. It supports a series resistance of 80 ohms and functions within a temperature range of -20°C to +70°C.

Crystals Feature Summary

• AT cut fundamental quartz construction
• Surface mount 4-pin no lead package
• RoHS compliant manufacturing

Crystals Applications

• Clock signal generation for microprocessors
• Timing reference for communication modules
• Frequency control in consumer electronics

Crystals Procurement Notes

Verify the specific load capacitance requirement against the target circuit design before procurement. Confirm that the operating temperature range meets the environmental specifications of the end application. Ensure compatibility with standard surface mount reflow soldering profiles to maintain component integrity during assembly processes.

Crystals Selection Notes

Select this component when a 38.4 MHz frequency is required with a 12 pF load capacitance. Consider the physical footprint constraints as the device measures 1.60mm by 1.20mm. Evaluate the thermal environment to ensure it remains within the specified -20°C to +70°C operational limits for stable performance.

Crystals Part Context

This part belongs to the JXS series of miniature surface mount crystals from Jauch Quartz. These components are designed for applications requiring precise timing in compact electronic devices. The series offers various frequency options and load capacitance values to suit different oscillator circuit requirements.

Crystals Replacement Considerations

Cross-reference with other 38.4 MHz SMD crystals having identical 12 pF load capacitance and similar physical dimensions. Verify equivalent electrical parameters such as series resistance and frequency stability before substitution.
