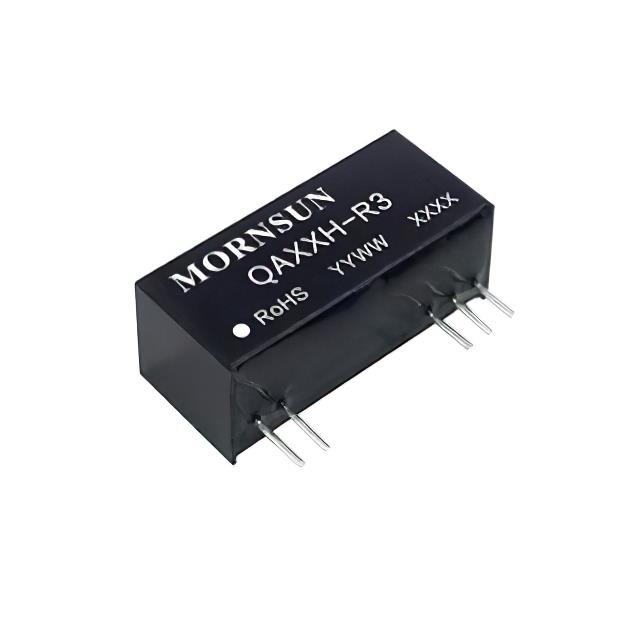

QA123H-1509R3

QA123H-1509R3 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Mornsun America, LLC. Its product description is DC/DC CONVERTER 12V 15/-9.0V 2.4. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for QA123H-1509R3

• Description：DC/DC CONVERTER 12V 15/-9.0V 2.4
• Series：QA_H-R3
• Mfr：Mornsun America, LLC
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：10.8V
• Voltage - Input (Max)：13.2V
• Voltage - Output 1：15V
• Voltage - Output 2：-9V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：100mA, 100mA
• Power (Watts)：-
• Voltage - Isolation：5 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：87%
• Mounting Type：Through Hole
• Package / Case：10-SIP Module, 5 Leads
• Size / Dimension：1.08" L x 0.37" W x 0.47" H (27.4mm x 9.5mm x 12.0mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for QA123H-1509R3
