QBHP686-RH

LED Indication - Discrete Overview

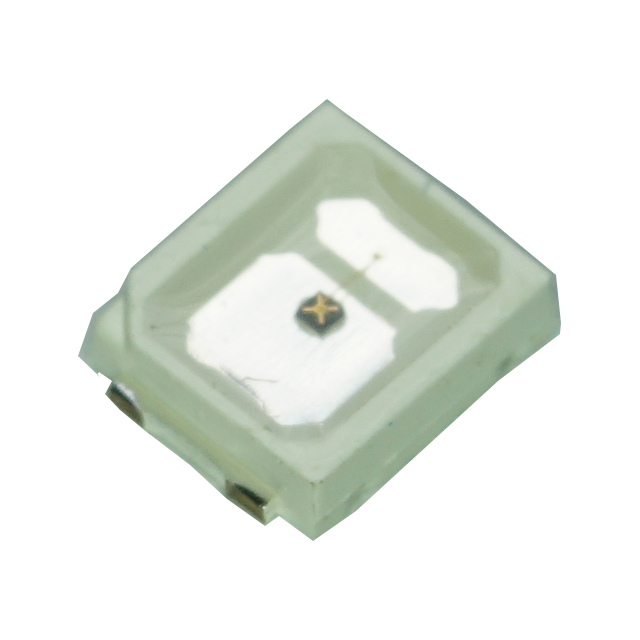

The QBHP686-RH is a high-power infrared LED emitter manufactured by QT Brightek. It operates at a peak wavelength of 850nm with a typical forward voltage of 1.9V and a maximum DC forward current of 700mA. The component features a 60-degree viewing angle and utilizes a top-view orientation. It is housed in a compact 2-SMD, leadless bare pad package designed for surface mount applications. The device supports an operating temperature range from -40°C to 85°C.

LED Indication - Discrete Feature Summary

• High power infrared emission capability optimized for active sensing applications
• Compact surface-mount footprint facilitating automated PCB assembly processes
• Wide operational temperature range ensuring reliability in varied environmental conditions

LED Indication - Discrete Applications

• Active infrared illumination for machine vision systems
• Proximity detection sensors requiring near-infrared light sources
• Security camera night vision enhancement modules

LED Indication - Discrete Procurement Notes

Verify the specific suffix configuration against the manufacturer datasheet to ensure compatibility with required binning parameters. Confirm that the selected packaging option aligns with your assembly line equipment capabilities. Ensure compliance with RoHS3 standards if environmental regulations apply to your final product deployment.

LED Indication - Discrete Selection Notes

Select this component when high-intensity infrared output is required within a small form factor. Consider the 700mA current rating for thermal management requirements on the printed circuit board. Evaluate the 60-degree beam angle against the specific field-of-view needs of the optical system design.

LED Indication - Discrete Part Context

This part belongs to the High Power series of optoelectronic components produced by QT Brightek. It serves as a specialized light source within the broader category of infrared emitters. The device complements other visible and ultraviolet LED offerings in the manufacturer's portfolio for integrated optical solutions.

LED Indication - Discrete Replacement Considerations

Consult official substitution lists for compatible alternatives. Verify pinout compatibility and thermal characteristics before integrating any substitute components into existing designs.
