QBLP595-IG-2897

LED Indication - Discrete Overview

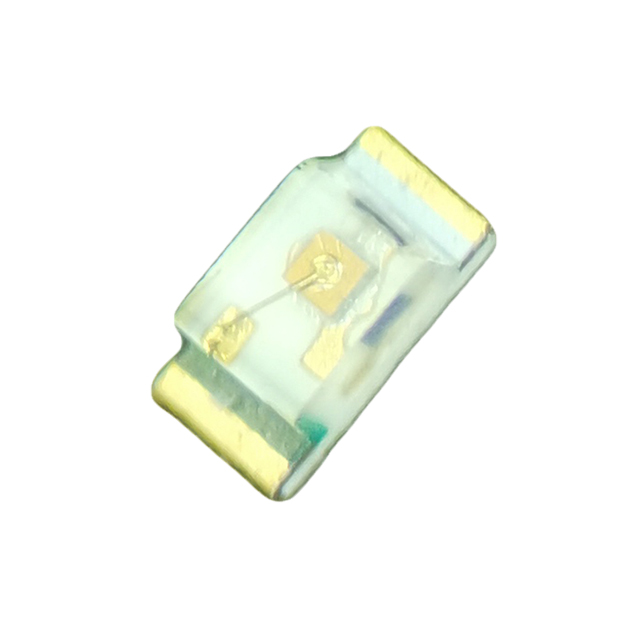

The QBLP595-IG-2897 is a single-color surface-mount LED manufactured by QT Brightek. It emits green light with a peak wavelength of 525nm and features a water-clear lens. The component utilizes a 0402 (1005 metric) package, measuring 1.00mm in length and 0.50mm in width, with a maximum height of 0.60mm. It operates at a forward voltage of 3.1V and a test current of 20mA. The device offers a viewing angle of 140 degrees and complies with RoHS3 standards.

LED Indication - Discrete Feature Summary

• Compact 0402 SMD footprint for high-density PCB layouts
• Green emission with 140-degree wide viewing angle
• Water-clear lens design for optimal light transmission

LED Indication - Discrete Applications

• General electronic status indication
• Portable consumer device indicators
• Medical equipment signaling
• Automotive interior lighting applications

LED Indication - Discrete Procurement Notes

Verify the specific suffix "-2897" to ensure compatibility with required binning or packaging specifications. Confirm that the 0402 package dimensions align with the target PCB land pattern. Check moisture sensitivity level (MSL 3) requirements for reflow soldering profiles. Ensure the 3.1V forward voltage matches the circuit design constraints.

LED Indication - Discrete Selection Notes

Select this component when a small form factor green indicator is required. The 0402 size suits space-constrained designs compared to larger PLCC packages. Consider the 140-degree viewing angle for visibility requirements. Verify thermal management needs as the component operates within standard temperature ranges.

LED Indication - Discrete Part Context

This part belongs to the QBLP595 series of 0402 SMD LEDs from QT Brightek. The series includes various colors and configurations. The QBLP595-IG-2897 specifically denotes the green variant with clear lens and standard packaging. It shares mechanical dimensions with other colors in the same series.

LED Indication - Discrete Replacement Considerations

Direct substitutes include other 0402 green LEDs with similar forward voltage and luminous intensity. Verify pinout compatibility if replacing with different manufacturers. Check if alternative parts meet the same MSL and RoHS3 compliance standards.
