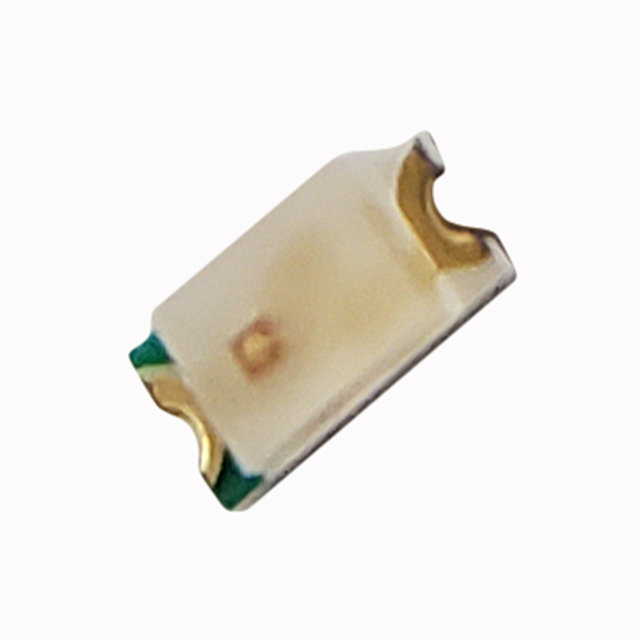

QBLP601-R0-2943

$0.14

Description：LED RED DIFFUSED 0603 SMD
Series：QBLP601
Mfr：QT Brightek (QTB)
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:3020de316772 Category: LED Indication - Discrete Brand: QT Brightek (QTB)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

QBLP601-R0-2943 is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists QT Brightek (QTB). Its product description is LED RED DIFFUSED 0603 SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for QBLP601-R0-2943

Description：LED RED DIFFUSED 0603 SMD
Series：QBLP601
Mfr：QT Brightek (QTB)
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Red
Configuration：Standard
Lens Color：White
Lens Transparency：Diffused
Millicandela Rating：120mcd
Lens Style：Rectangle with Flat Top
Lens Size：1.10mm x 0.80mm
Voltage - Forward (Vf) (Typ)：2V
Current - Test：20mA
Viewing Angle：140°
Mounting Type：Surface Mount
Wavelength - Dominant：622nm
Wavelength - Peak：636nm
Features：-
Package / Case：0603 (1608 Metric)
Supplier Device Package：603
Size / Dimension：1.60mm L x 0.80mm W
Height (Max)：0.70mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for QBLP601-R0-2943

QBLP601-R0-2943

LED Indication - Discrete Overview

The QBLP601-R0-2943 is a red surface-mount LED from the QBLP601 series by QT Brightek. It features a standard configuration with a diffuse lens and a 140-degree viewing angle. The component operates at a typical forward voltage of 2V and a test current of 20mA, emitting light at a primary wavelength of 624nm. Its physical dimensions are 1.60mm in length, 0.80mm in width, and a maximum height of 0.70mm. The device utilizes a white lens color and is supplied in tape and reel packaging for automated assembly.

LED Indication - Discrete Feature Summary

Features a compact 0603 (1608 metric) surface-mount package designed for high-density circuit board applications.
Incorporates a diffuse lens to provide wide-angle illumination with a 140-degree viewing angle.
Utilizes a dual-chip design within a single small footprint to support space-constrained electronic devices.

LED Indication - Discrete Applications

Mobile device indicator lights
Wearable device status indicators
Backlighting applications

LED Indication - Discrete Procurement Notes

Verify the specific suffix R0-2943 against official QT Brightek documentation to confirm exact optical characteristics and binning requirements. Ensure compatibility with existing PCB footprints and reflow soldering profiles specified in the manufacturer's datasheet before finalizing procurement decisions.

LED Indication - Discrete Selection Notes

Select this component when a standard red indicator is required in a restricted 0603 footprint. The diffuse lens option is suitable for applications requiring uniform light distribution rather than a focused beam. Confirm that the 140-degree viewing angle meets the visibility requirements of the target enclosure design.

LED Indication - Discrete Part Context

This part belongs to the QBLP601 series, which consists of dual-chip LEDs designed for space-limited boards. The series offers various color combinations in a 1.6 mm x 0.8 mm x 0.55 mm package, enabling multiple functions within a minimal area for consumer electronics.
