QBLP601-Y

LED Indication - Discrete Overview

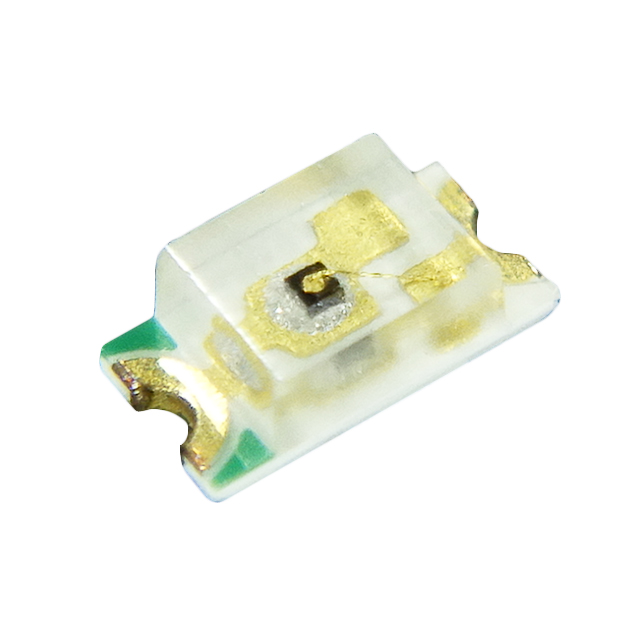

The QBLP601-Y is a surface-mount indicator LED manufactured by QT Brightek, designed for compact electronic assemblies. It features a standard white light emission with a diffused lens configuration housed in a 0603 (1608 metric) package. The component operates with a typical forward voltage of 3.2V and is tested at a current of 20mA. It provides a luminous intensity of 330mcd with a wide viewing angle of 140 degrees. The physical dimensions are 1.60mm in length, 0.80mm in width, and a maximum height of 0.60mm. The lens exhibits yellow coloration with transparency classified as diffused.

LED Indication - Discrete Feature Summary

• Diffused lens design ensures uniform light distribution for status indication applications
• Standard surface mount construction facilitates automated PCB assembly processes
• Wide viewing angle supports visibility from multiple observation positions

LED Indication - Discrete Applications

• Status indication on consumer electronics devices
• Power state signaling in portable equipment
• Indicator lighting for control panels and switches

LED Indication - Discrete Procurement Notes

Verify the specific suffix designation to confirm the exact optical characteristics, as variations exist within the series. Ensure compatibility with RoHS3 compliance requirements for the target market. Confirm moisture sensitivity level classifications prior to storage and handling procedures. Cross-reference official datasheets for precise thermal management guidelines during soldering operations.

LED Indication - Discrete Selection Notes

Select this component when a low-profile white indicator is required for space-constrained designs. Consider the forward voltage drop relative to the driving circuit capabilities. Evaluate the diffused output against clear lens alternatives if directional brightness is prioritized over uniformity. Verify mechanical fit within the designated footprint area on the printed circuit board.

LED Indication - Discrete Part Context

This part belongs to the QBLP601 series of single-chip LEDs from QT Brightek. The series offers various color options and lens treatments tailored for different visual signaling needs. The 0603 form factor represents a common industry standard for surface-mounted components, balancing size constraints with adequate light output for general purpose indicators.

LED Indication - Discrete Replacement Considerations

QBLP601-IW serves as a direct alternative within the same series offering similar white light specifications.
