QBLP601D-R

LED Indication - Discrete Overview

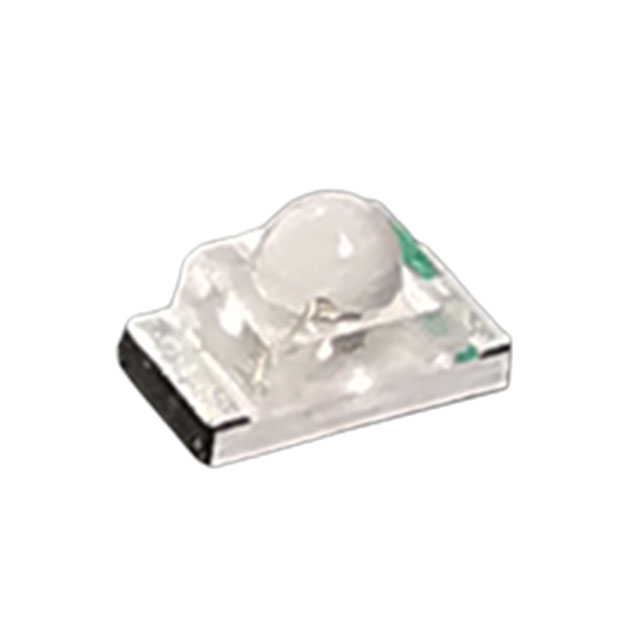

The QBLP601D-R is a discrete red surface-mount LED from the QBLP601 series by QT Brightek. It features a clear lens and operates at a peak wavelength of 624nm. The component has a typical forward voltage of 2V and a luminous intensity of 400mcd at a test current of 20mA. It utilizes a 0603 (1608 metric) package with dimensions of 1.6mm length, 0.8mm width, and a maximum height of 0.95mm. The viewing angle is 35 degrees.

LED Indication - Discrete Feature Summary

• Clear lens design for focused light emission
• Compact 0603 surface-mount footprint
• High luminous intensity output

LED Indication - Discrete Applications

• Device status indication
• Panel indicator lights
• Consumer electronics signaling

LED Indication - Discrete Procurement Notes

Verify the specific suffix 'D' indicates the dome lens configuration as per manufacturer documentation. Confirm RoHS compliance and MSL rating before integration. Ensure ordering codes match the exact package variant to avoid dimensional mismatches in automated assembly processes.

LED Indication - Discrete Selection Notes

Select this component when a high-intensity red indicator is required in a constrained space. The 35-degree viewing angle suits applications needing directed visibility rather than wide dispersion. Compare against diffused variants if broader illumination is necessary.

LED Indication - Discrete Part Context

This part belongs to the QBLP601 series, which includes various color and lens options in the 0603 SMD form factor. It serves as a compact solution for modern PCB designs where space efficiency is critical for indicator functions.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
