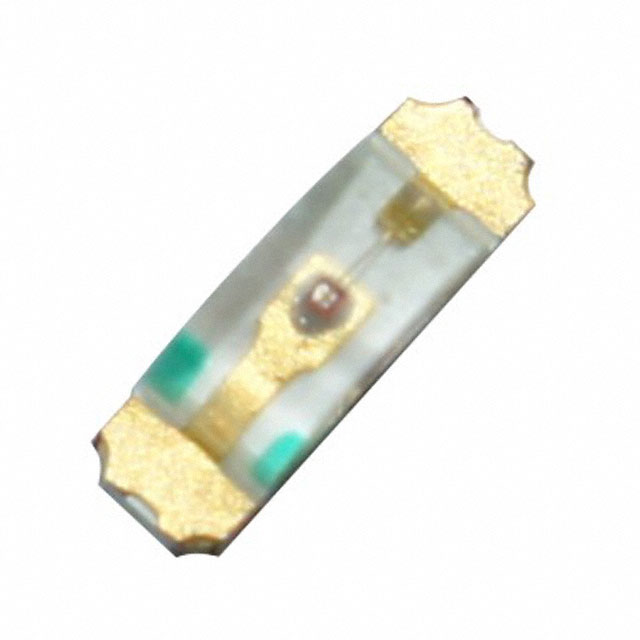

QBLP615-R

$0.29

Description：LED RED CLEAR 1206 SMD R/A
Series：QBLP615
Mfr：QT Brightek (QTB)
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:8e8d9d953821 Category: LED Indication - Discrete Brand: QT Brightek (QTB)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

QBLP615-R is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists QT Brightek (QTB). Its product description is LED RED CLEAR 1206 SMD R/A. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for QBLP615-R

Description：LED RED CLEAR 1206 SMD R/A
Series：QBLP615
Mfr：QT Brightek (QTB)
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Red
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：140mcd
Lens Style：Rectangle with Domed Top
Lens Size：2.00mm x 1.00mm
Voltage - Forward (Vf) (Typ)：2V
Current - Test：20mA
Viewing Angle：150°
Mounting Type：Surface Mount, Right Angle
Wavelength - Dominant：620nm
Wavelength - Peak：-
Features：-
Package / Case：2-SMD, 1206
Supplier Device Package：1206
Size / Dimension：3.20mm L x 1.40mm W
Height (Max)：1.00mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for QBLP615-R

QBLP615-R

LED Indication - Discrete Overview

The QBLP615-R is a red light-emitting diode from the QT Brightek QBLP615 series, designed for surface-mount applications. It features a clear lens with a 1206 (3216 metric) package and right-angle installation configuration. The component emits at a primary wavelength of 625nm with a peak of 630nm. Typical forward voltage is 2V at a test current of 20mA. It offers a 150-degree viewing angle and a luminous intensity of 70mcd. Dimensions are 2.10mm length by 1.00mm width, with a maximum height of 0.60mm.

LED Indication - Discrete Feature Summary

Right-angle surface mount construction for flexible PCB layout
Clear lens design for direct visibility
Wide 150-degree viewing angle for broad illumination coverage

LED Indication - Discrete Applications

Panel indicator lights
Status indication in electronic devices
General purpose signaling

LED Indication - Discrete Procurement Notes

Verify the specific suffix and datasheet revision to ensure compatibility with your assembly requirements. Confirm moisture sensitivity level (MSL 3) handling procedures during storage and reflow soldering. Check RoHS3 compliance status if required by your manufacturing standards. Ensure the right-angle orientation matches your board design constraints before ordering.

LED Indication - Discrete Selection Notes

Select this component when a low-profile, right-angle red LED is required for panel mounting or tight spaces. The 1206 footprint provides a balance between size and brightness. Consider the 150-degree viewing angle for applications requiring wide visibility. Verify that the 2V forward voltage aligns with your drive circuit capabilities.

LED Indication - Discrete Part Context

This part belongs to the QBLP615 series of surface-mount LEDs from QT Brightek. The series includes various colors and package types, all sharing similar mechanical dimensions and mounting characteristics. The QBLP615-R specifically denotes the red color variant within this standardized family of components.
