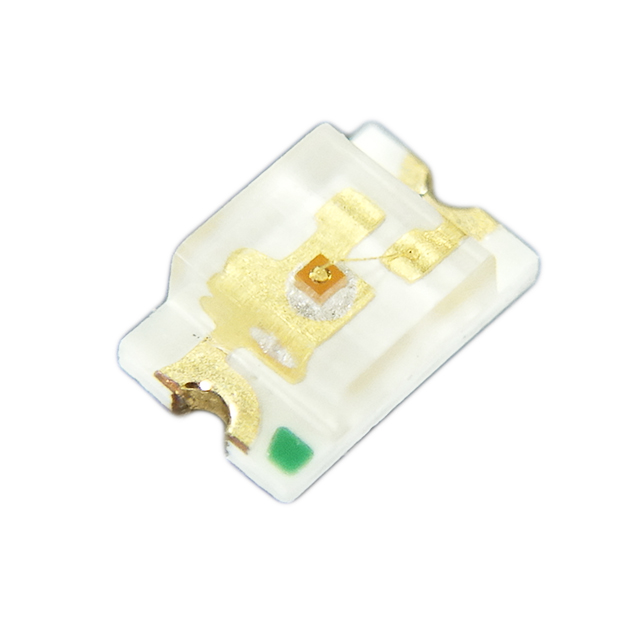

QBLP631-2IB

$0.20

Description：0805 LED BLUE 466NM DOMINANT, 46
Series：QBLP631
Mfr：QT Brightek (QTB)
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:ab5ffdd79857 Category: LED Indication - Discrete Brand: QT Brightek (QTB)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

QBLP631-2IB is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists QT Brightek (QTB). Its product description is 0805 LED BLUE 466NM DOMINANT, 46. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for QBLP631-2IB

Description：0805 LED BLUE 466NM DOMINANT, 46
Series：QBLP631
Mfr：QT Brightek (QTB)
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Blue
Configuration：Independent
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：104mcd
Lens Style：Square with Flat Top
Lens Size：1.30mm x 1.25mm
Voltage - Forward (Vf) (Typ)：2.9V
Current - Test：20mA
Viewing Angle：140°
Mounting Type：Surface Mount
Wavelength - Dominant：466nm
Wavelength - Peak：462nm
Features：-
Package / Case：0805 (2012 Metric)
Supplier Device Package：805
Size / Dimension：2.00mm L x 1.25mm W
Height (Max)：0.90mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for QBLP631-2IB

QBLP631-2IB

LED Indication - Discrete Overview

The QBLP631-2IB is a blue surface-mount LED from the QBLP631 series by QT Brightek. It features a clear lens with a dominant wavelength of 466nm and a peak wavelength of 468nm. The component operates at a typical forward voltage of 2.9V with a test current of 20mA. Packaged in an 0805 (2012 Metric) SMD footprint, it offers a viewing angle of 140 degrees and a maximum height of 0.90mm. The device meets RoHS3 standards and has a Moisture Sensitivity Level (MSL) rating of 3.

LED Indication - Discrete Feature Summary

InGaN technology for stable blue light emission
Standard configuration with clear rectangular flat-top lens
RoHS3 compliant construction

LED Indication - Discrete Applications

General indicator lighting
Electronic status displays
Panel instrumentation

LED Indication - Discrete Procurement Notes

Verify the specific suffix '2IB' against the manufacturer datasheet to confirm the exact electrical parameters, particularly the forward voltage and wavelength specifications. Ensure compatibility with standard reflow soldering profiles for MSL 3 components during assembly planning.

LED Indication - Discrete Selection Notes

Select this component for applications requiring a compact 0805 form factor with high brightness. Compare the 2.9V forward voltage against circuit design limits. Consider the 140-degree viewing angle for visibility requirements and verify thermal management needs for continuous operation.

LED Indication - Discrete Part Context

This part belongs to the QBLP631 series of ultra-bright LEDs. The series includes various colors such as red, yellow-green, and blue, all sharing similar physical dimensions and mounting characteristics. This specific variant provides blue illumination within the standard 0805 package size.
