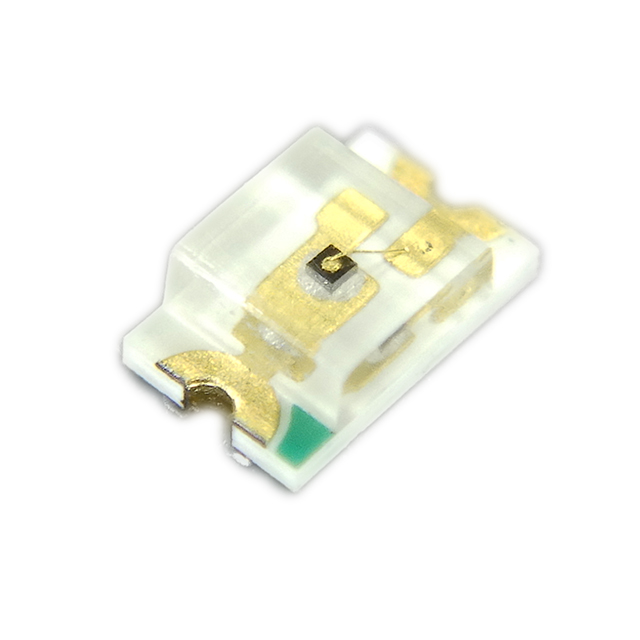

QBLP631-O-2

$0.18

Description：0805 LED ORANGE 605NM DOMINANT,6
Series：QBLP631
Mfr：QT Brightek (QTB)
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:49f6559021aa Category: LED Indication - Discrete Brand: QT Brightek (QTB)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

QBLP631-O-2 is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists QT Brightek (QTB). Its product description is 0805 LED ORANGE 605NM DOMINANT,6. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for QBLP631-O-2

Description：0805 LED ORANGE 605NM DOMINANT,6
Series：QBLP631
Mfr：QT Brightek (QTB)
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Orange
Configuration：Independent
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：180mcd
Lens Style：Square with Flat Top
Lens Size：1.30mm x 1.25mm
Voltage - Forward (Vf) (Typ)：2V
Current - Test：20mA
Viewing Angle：140°
Mounting Type：Surface Mount
Wavelength - Dominant：605nm
Wavelength - Peak：610nm
Features：-
Package / Case：0805 (2012 Metric)
Supplier Device Package：805
Size / Dimension：2.00mm L x 1.25mm W
Height (Max)：0.90mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for QBLP631-O-2

QBLP631-O-2

LED Indication - Discrete Overview

The QBLP631-O-2 is a surface-mount LED from the QBLP631 series by QT Brightek. It emits orange light with a dominant wavelength of 605nm. The component features a clear lens and operates at a typical forward voltage of 2V under a 20mA test current. It utilizes an 0805 (2012 Metric) package measuring 2.00mm in length, 1.25mm in width, and has a maximum height of 0.90mm. The device offers a viewing angle of 140 degrees and complies with RoHS3 standards.

LED Indication - Discrete Feature Summary

Emits orange light at 605nm
Features a clear rectangular lens with a flat top
Designed for surface mount installation

LED Indication - Discrete Applications

Discrete LED indication
Panel status indicators
Electronic equipment signaling

LED Indication - Discrete Procurement Notes

Verify the specific suffix -2 against official manufacturer documentation to confirm exact binning or optical characteristics. Ensure compatibility with standard reflow soldering profiles for 0805 components. Confirm RoHS3 compliance requirements for the target assembly process.

LED Indication - Discrete Selection Notes

Select this component for applications requiring orange visual feedback in compact spaces. The 0805 footprint allows for high-density PCB layouts. Consider the 140-degree viewing angle for broad visibility requirements. Verify that the 2V forward voltage aligns with the driving circuit design.

LED Indication - Discrete Part Context

This part belongs to the QBLP631 series of ultra-bright LEDs manufactured by QT Brightek. The series includes various colors such as yellow-green and blue, all sharing similar physical dimensions and surface-mount packaging standards for consistent manufacturing processes.
