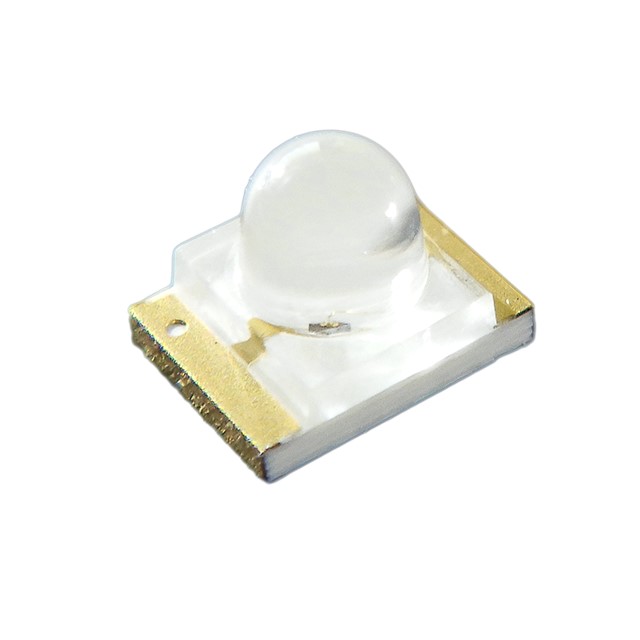

QBLP653-Y

$0.32

Description：LED YELLOW CLEAR 1208 SMD
Series：QBLP653
Mfr：QT Brightek (QTB)
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:1dd81ea01f87 Category: LED Indication - Discrete Brand: QT Brightek (QTB)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

QBLP653-Y is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists QT Brightek (QTB). Its product description is LED YELLOW CLEAR 1208 SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for QBLP653-Y

Description：LED YELLOW CLEAR 1208 SMD
Series：QBLP653
Mfr：QT Brightek (QTB)
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Yellow
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：3400mcd
Lens Style：Round with Domed Top
Lens Size：1.80mm Dia
Voltage - Forward (Vf) (Typ)：2V
Current - Test：20mA
Viewing Angle：15°
Mounting Type：Surface Mount
Wavelength - Dominant：590nm
Wavelength - Peak：-
Features：-
Package / Case：1209 (3224 Metric)
Supplier Device Package：1208
Size / Dimension：3.20mm L x 2.40mm W
Height (Max)：2.60mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for QBLP653-Y

QBLP653-Y

LED Indication - Discrete Overview

The QBLP653-Y is a surface-mount infrared LED emitter manufactured by QT Brightek. It operates at a peak wavelength of 940nm with a typical forward voltage of 1.3V and a maximum DC forward current of 50mA. The component provides a minimum radiant intensity of 1.6mW/sr at 20mA and features a narrow 15-degree viewing angle. Housed in a 1209 (3224 metric) package, it supports top-view installation and functions within an operating temperature range of -40°C to 80°C.

LED Indication - Discrete Feature Summary

Highly directional infrared emission optimized for precise signal targeting
Compact surface-mount form factor suitable for space-constrained designs
Robust thermal performance across extended industrial temperature ranges

LED Indication - Discrete Applications

Infrared remote control transmitters
Optical sensor proximity detection systems
Security system motion detectors

LED Indication - Discrete Procurement Notes

Verify the specific suffix against official datasheets to confirm optical characteristics. Ensure compatibility with automated pick-and-place equipment due to the surface-mount package type. Confirm RoHS compliance status prior to integration into regulated assemblies.

LED Indication - Discrete Selection Notes

Select this component when a focused infrared beam is required for short-range communication or sensing. Evaluate the 15-degree viewing angle against system alignment tolerances. Consider the 1.3V forward voltage drop for power supply design and current limiting resistor calculations.

LED Indication - Discrete Part Context

This part belongs to the QBLP653 series of infrared emitters from QT Brightek. The series offers various lens configurations and wavelengths tailored for consumer electronics and industrial sensing applications requiring reliable infrared signal transmission.
