QBLP670-O

LED Indication - Discrete Overview

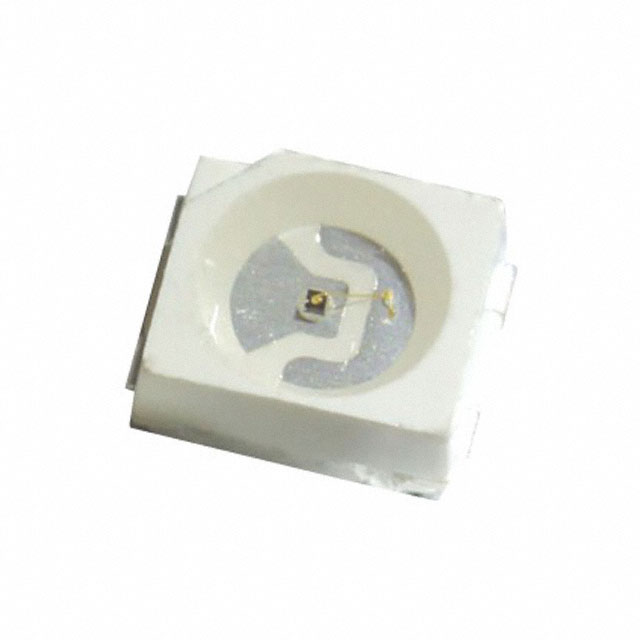

The QBLP670-O is a warm white LED indicator from the QBLP670 series by QT Brightek. It features a standard configuration with a yellow diffused lens and emits light at a color temperature of 3000K. The component operates with a typical forward voltage of 3.2V and a test current of 20mA, producing an intensity of 2400mcd. Designed for surface mount installation, it utilizes a 2-PLCC package with dimensions of 3.20mm in length, 2.80mm in width, and a maximum height of 2.10mm. The unit offers a wide viewing angle of 120 degrees.

LED Indication - Discrete Feature Summary

• Emits warm white light with a 3000K color temperature
• Features a yellow diffused lens for uniform light distribution
• Provides high luminous intensity of 2400mcd at standard test conditions
• Utilizes a compact 2-PLCC surface mount package

LED Indication - Discrete Applications

• Status indication on electronic circuit boards
• Panel indicators for consumer electronics
• General purpose signaling in control systems

LED Indication - Discrete Procurement Notes

Verify the specific suffix to confirm the exact optical characteristics, as variations exist within the QBLP670 series. Ensure compatibility with automated pick-and-place equipment due to the surface mount packaging. Confirm that the thermal management requirements align with the device's operating temperature range during integration.

LED Indication - Discrete Selection Notes

Select this component when a warm white indicator is required for visual status feedback. Consider the 2-PLCC footprint for space-constrained designs. Evaluate the 120-degree viewing angle against visibility requirements. Compare the 2400mcd intensity against ambient lighting conditions to ensure adequate visibility.

LED Indication - Discrete Part Context

This part belongs to the QBLP670 series of PLCC2 LEDs manufactured by QT Brightek. The series includes various colors and lens types, such as infrared and clear lenses. The QBLP670-O specifically denotes the warm white variant with a diffused lens, distinguishing it from other configurations like the QBLP670-IR2 or QBLP671-O.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
